Description: Be the belle of the ball with the NeoPixel Jewel! These NeoPixel Jewels now have 4 LEDs in them (red, green, blue, and white) for excellent lighting effects.
This is the Natural White RGBW version. We also have this jewel in Warm White, Cool White, and good ole RGB!
The NeoPixel is 'split', one half is the RGB you know and love, the other half is a white LED with a yellow phosphor. Unlit, it resembles an egg yolk. Lit up these are insanely bright (like ow my eye hurts) and can be controlled with 8-bit PWM per channel (8 x 4 channels = 32-bit color overall). Great for adding lots of colorful + white dots to your project!

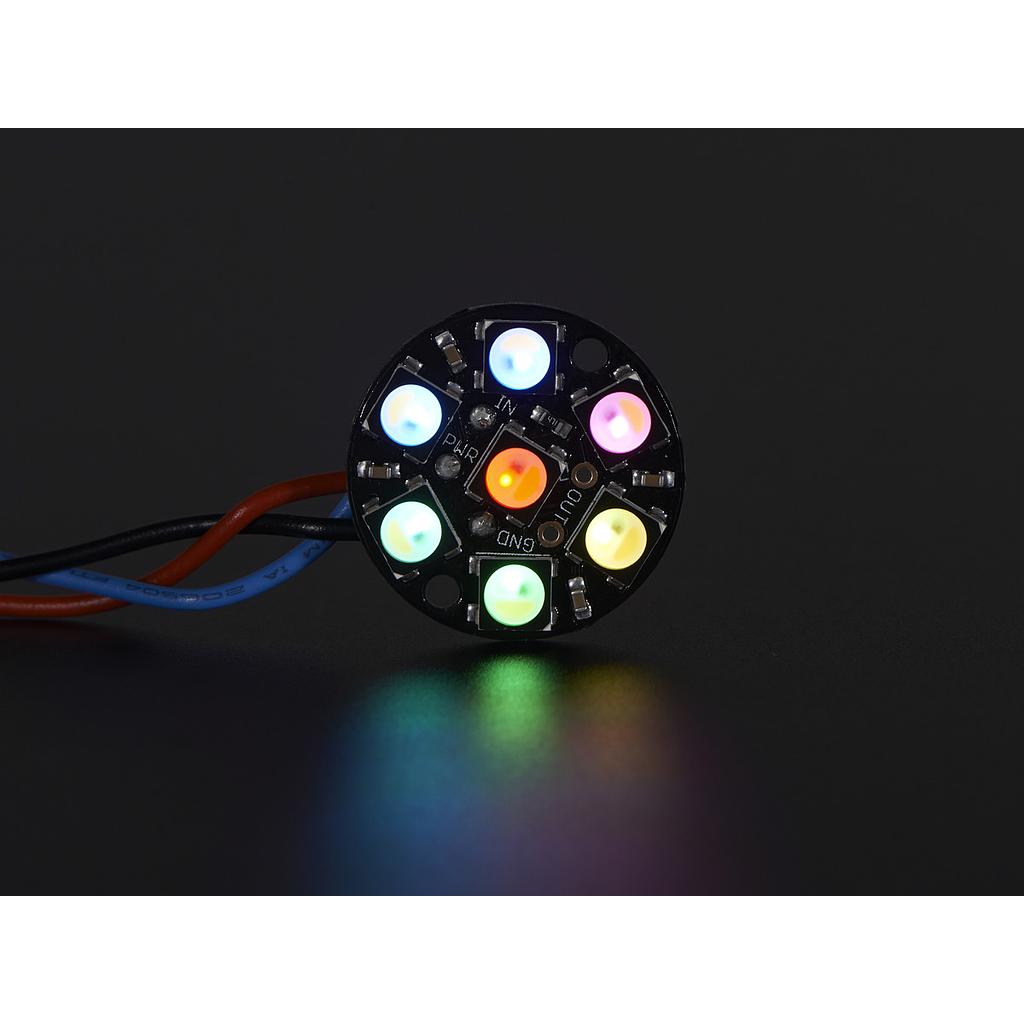

We fit seven of our tiny 5050 (5mm x 5mm) smart RGBW LEDs onto a beautiful, round PCB with mounting holes and a chainable design to create what we think is our most elegant (and evening-wear appropriate) NeoPixel board yet. Use only one microcontroller pin to control as many as you can chain together! Each LED is addressable as the driver chip is inside the LED. Each one has ~18mA constant current drive so the color will be very consistent even if the voltage varies, and no external choke resistors are required making the design slim. Power the whole thing with 5VDC (4-7V works) and you're ready to rock.
NeoPixel LEDs use 800 KHz protocol so specific timing is required. On NeoPixels, the PWM rate is ~400 Hz, which works well but is noticable if the LED is moving.
The LEDs are 'chainable' by connecting the output of one Jewel into the input of another. There is a single data line with a very timing-specific protocol. Since the protocol is very sensitive to timing, it requires a real-time microconroller such as an AVR, Arduino, PIC, mbed, etc. It cannot be used with a Linux-based microcomputer or interpreted microcontroller such as the netduino or Basic Stamp. Our wonderfully-written Neopixel library for Arduino supports these pixels! As it requires hand-tuned assembly it is only for AVR cores but others may have ported this chip driver code so please google around. An 8MHz or faster processor is required.
Comes as a single round board with 7 individually addressable RGBW LEDs assembled and tested.
Features:
- Diameter: 22.95mm / 0.9"
- Weight: 1.4g
- May ship either WS2812B or SK6812-based LEDs. They are the same brightness, color and protocol
