INA219 High Side DC Current Sensor Breakout - 26V +-3.2A Max - STEMMA QT

https://electronics123.odoo.com/web/image/product.template/11839/image_1920?unique=164a300
(0 review)

SKU : ADA-904
Quantity on Hand : 4
Skill Level : Component or Part
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

ADA-904 904

10.95 10.950000000000001 USD 10.95

10.95

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

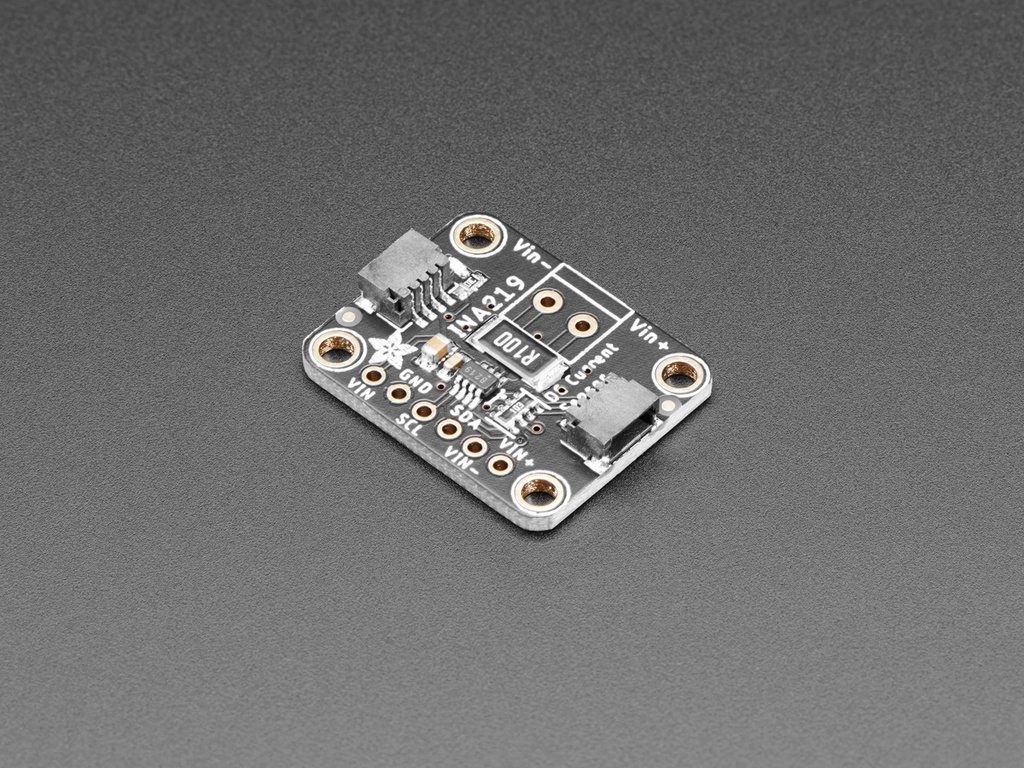

Description: This breakout board will solve all your power-monitoring problems. Instead of struggling with two multimeters, you can just use the handy INA219B chip on this breakout to both measure both the high side voltage and DC current draw over I2C with 1% precision.

Most current-measuring devices such as our current panel meter are only good for low side measuring. That means that unless you want to get a battery involved, you have to stick the measurement resistor between the target ground and true ground. This can cause problems with circuits since electronics tend to not like it when the ground references change and move with varying current draw. This chip is much smarter - it can handle high side current measuring, up to +26VDC, even though it is powered with 3 or 5V. It will also report back that high side voltage, which is great for tracking battery life or solar panels.
A precision amplifier measures the voltage across the 0.1 ohm, 1% sense resistor. Since the amplifier maximum input difference is ±320mV this means it can measure up to ±3.2 Amps. With the internal 12 bit ADC, the resolution at ±3.2A range is 0.8mA. With the internal gain set at the minimum of div8, the max current is ±400mA and the resolution is 0.1mA. Advanced hackers can remove the 0.1 ohm current sense resistor and replace it with their own to change the range (say a 0.01 ohm to measure up 32 Amps with a resolution of 8mA)
We include a 6-pin header (so you can easily attach this sensor to a breadboard) as well as a 3.5mm terminal plug so you can easily attach and detach your load. Usage is simple. Power the sensor itself with 3 to 5VDC and connect the two I2C pins up to your microcontroller. Then connect your target power supply to VIN+ and the load to ground to VIN-. We have a detailed tutorial that will do all the gain, range and math for you - just plug and go with Arduino or CircuitPython!

    Features:

    • As of January 29, 2021, we've updated this sensor to our STEMMA QT standard for sensors. There are now four mounting holes and two STEMMA QT connectors for plug-and-play connectivity! The schematic is the same; only the mechanical shape has changed.



    • 0.1 ohm 1% 2W current sense resistor
    • Up to +26V target voltage
    • Up to ±3.2A current measurement, with ±0.8mA resolution
    • Note: The terminal block included with your product may be blue or black.
    • This board/chip uses I2C 7-bit addresses 0x40, 0x41, 0x44, 0x45, selectable with jumpers

    Product Dimensions: 25.6mm x 20.4mm x 4.7mm / 1.0" x 0.8" x 0.2"
