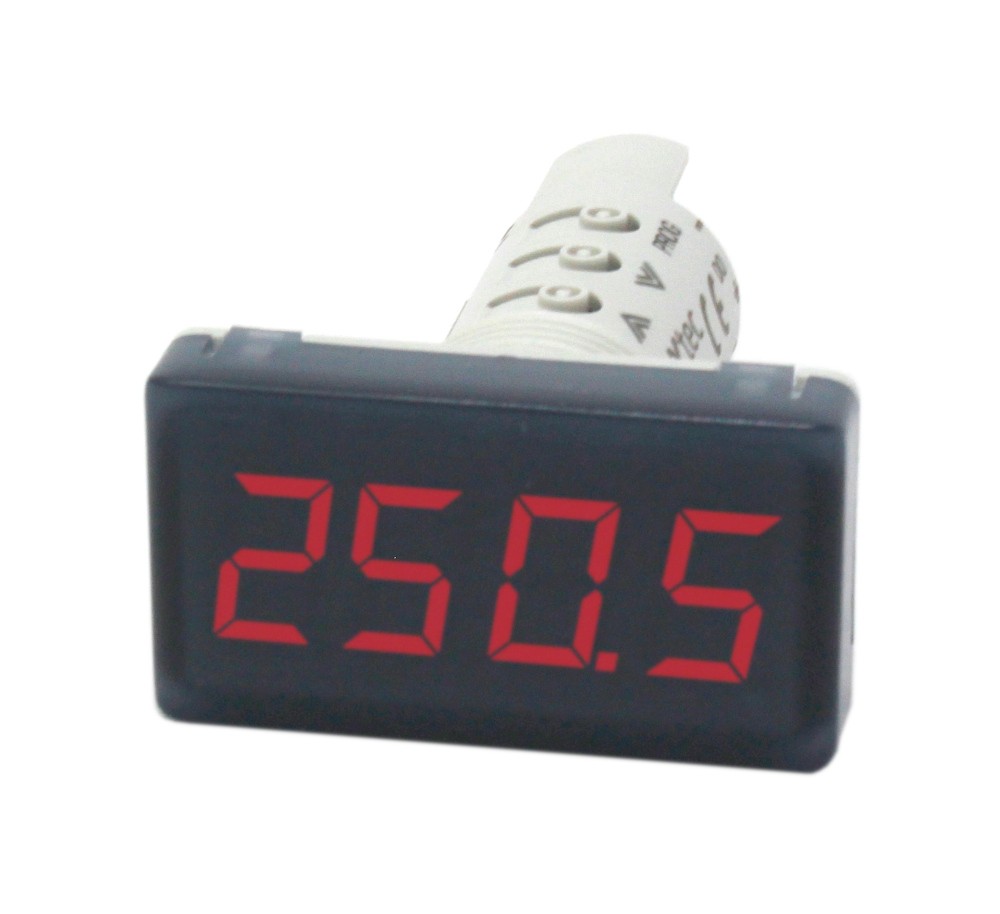

Easy to mount the ITP14 fits into a standard 22.5 mm borehole for signal lamps and can be connected to 0-10V or 4-20mA signals. The measured values are scalable and there is NPN output for control or alarm function.
The ITP14 is a universally-applicable process display for monitoring and control of industrial processes. This display features a digital output and a configurable analog input. The NPN transistor output can control a load up to 42 V DC / 200 mA, which makes it possible to implement ON/OFF control. The input can be set either for voltage signals (0-10 V and others) or for current signals (4-20 mA and others).
The ITP14 has a compact, standardized design and fits into a standard 22.5 mm borehole for signal lamps. This provides quick and easy installation and many displays can be accommodated in a control cabinet door or on a panel.
Features:
- Measuring and displaying of the process value
- Signal scaling
- Adjustable decimal point position
- ON/OFF control with an NPN output
- Square root function (for special transmitters)
- Digital filter
- Alarm function (blinking when exceeding the set points)
- Error indication when exceeding the measuring limits
- Error indication when wire break or short circuit
Specifications:
- Power supply: 24 (10 to 30) V DC
- Power consumption, max.: 1 W
- Input: 1
- Input signal: 0(2)-10 V, 0(4)-20 mA, 0-5 mA
- Output: NPN transistor
- Display range: -999 to +9999
- Sampling time: 0.3 s
- Accuracy: ±(0.2% FS + 1 digit)
- Temperature influence: 0.2% / 10 °C
- Loading capacity: 200 mA, 42 V DC
- Character height: 14 mm
- Ambient temperature: -40 to +60 °C
- Relative humidity: up to 80% (at +35 °C, non-condensing)
- IP Code:
- Front: IP65
- Rear: IP20
- UV-protected so that they can be used under direct sun exposure.
- Protection class: III
- Weight approx.: 30 g
- Dimensions: 48 x 26 x 65 mm
