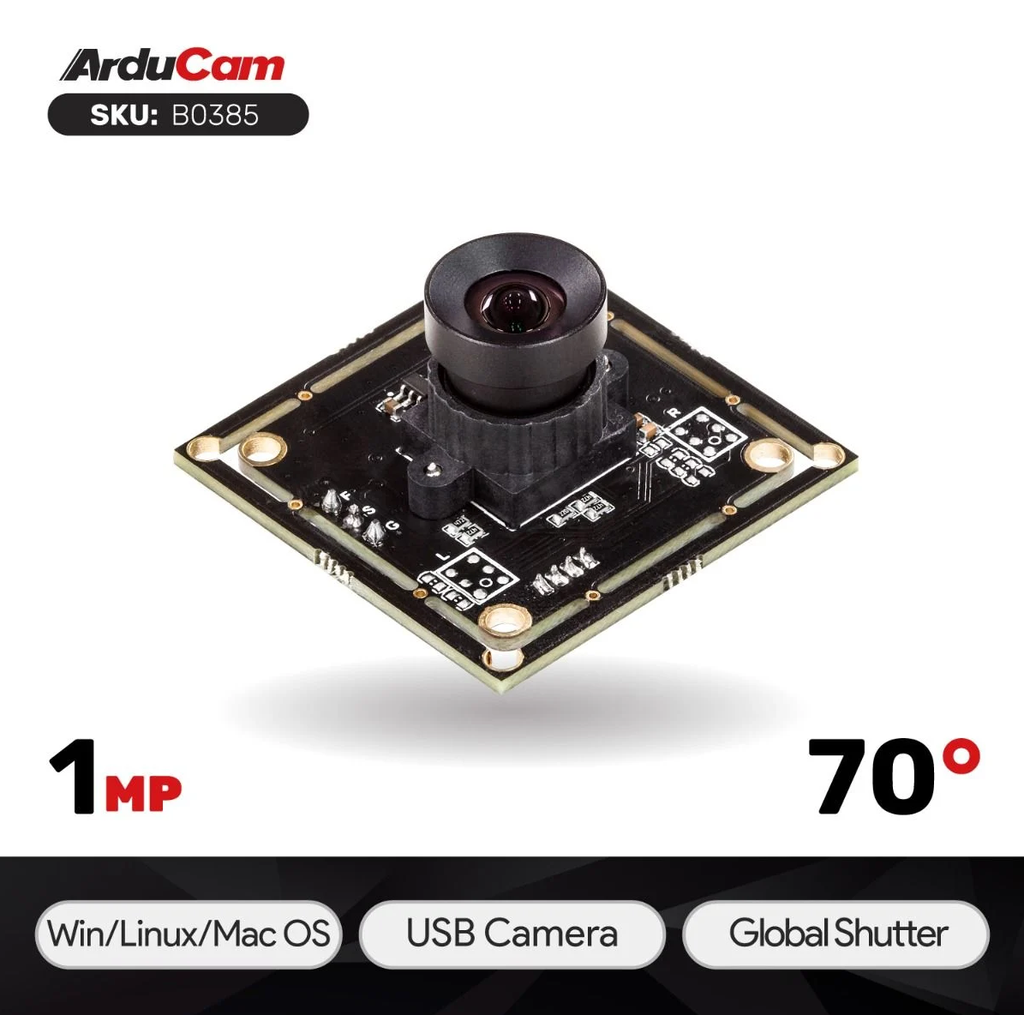

Arducam B0385 is a new member of Arducam’s USB camera family. It’s a 1MP, based on the 1/4″ color global shutter OV9782 image sensor, UVC compliant, low distortion USB 2.0 camera.
No longer be anxious about installing the driver! The native UVC drivers of Windows, Linux and Mac shall be compatible with this camera so that it does not require extra drivers to be installed.
The global shutter sensor’s excellent low-light sensitivity makes it shoot crisp sharp and accurate complete color images even for high-speed moving objects.
Camera
– Sensor: 1/4” OV9782
– Resolution: 1MP 1280 x 800
– Data Format: MJPG/YUY2
– Frame Rate: MJPG 100fps@1280 x 800/720p/800 x 600/640 x 480/320 x 240; YUY2 10fps@1280 x 800/1280 x 720.
Power
– Power Supply: USB powered 5V
– Working Current: MAX 200mA
Physical
– Operating Temp.: -4°F~158°F (-20°C~+70°C).
– Dimension: 38mmx38mm (Hole pitch compatible with 34mmx34mm, 28x28mm)
Documentation and Downloads
