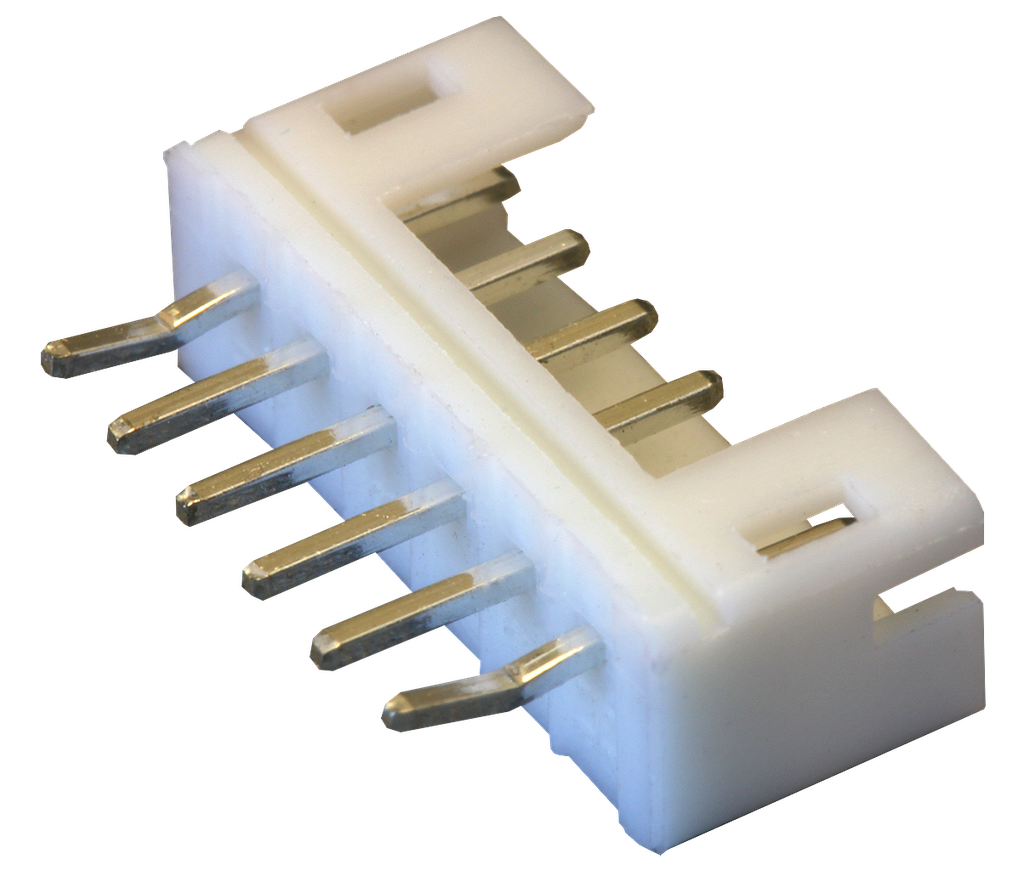

Description: This is a 6-pin male connector header as found on our C429-series cameras. It matches with our BB019.
The dimple at the center of the contact ensures positive contact and low contact resistance at all times.
Features:
- The contact has a long wire strip holding length of 2.6 +/-0.4mm.
- Fully shrouded header
- The same shrouded header can be used for the KR/KRD/CR insulation displacement connectors.
- Series PH connector
- Category Wire to Board Crimp style Connectors
- Type Disconnectable type Crimp style, Thin type
Specifications:
- Pitch 2.0 mm
- Current rating 2A (AWG#24)
- Voltage rating 100V
- PC board mounting direction Top entry
