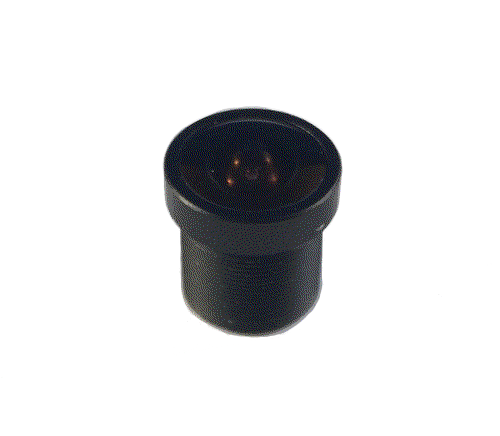

PLEASE NOTE: This is only the lens. (Suitable lens holder is SKU# BB288 see below)
Features:
- For Sensor Size: 1/4" (max image circle 4.80 mm dia)
- Focal Length (EFL): f=1.68 mm
- F/NO (infinite): F/NO 2.9
- Back Focal Length: BFL=4.3 mm
- Flange Back Length: FB=3.36 mm
- Field of View (FOV):
- Diagonal = 170 deg @ 4.5 mm
- Horizontal = 128 deg @ 3.6 mm
- Vertical = 94 deg @2.7 mm
- IR cut filter: None
- Total height (mm): 15 mm
- Diameter 14 mm
- TV Distortion: <30%
- Thread size: M12 x P0.5
