CLOSEOUT ITEM. LIMITED QUANTITY AVAILABLE. LOWER PRICE.

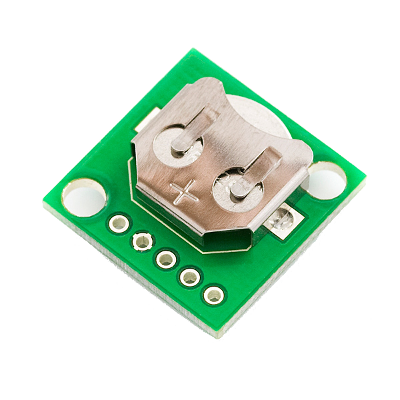

Description: This a custom designed module for the DS1307 Real Time Clock. The module comes fully assembled and pre-programmed with the current time of our supplier - MST. The included Lithium coin cell battery (CR1225 41mAh) will run the module for a minimum of 9 years (17 years typical) without external 5V power. The DS1307 is accessed via the I2C protocol. We've written a test-bed to program the modules. This test-bed code should give you some insight on how to interface the module to any microcontroller using our example software I2C and BCD routines.
Features:
Click links for:
Drivers:
Description: This a custom designed module for the DS1307 Real Time Clock. The module comes fully assembled and pre-programmed with the current time of our supplier - MST. The included Lithium coin cell battery (CR1225 41mAh) will run the module for a minimum of 9 years (17 years typical) without external 5V power. The DS1307 is accessed via the I2C protocol. We've written a test-bed to program the modules. This test-bed code should give you some insight on how to interface the module to any microcontroller using our example software I2C and BCD routines.
Features:
- Two wire I2C interface
- Hour : Minutes : Seconds AM/PM
- Day Month, Date - Year
- Leap year compensation
- Accurate calendar up to year 2100
- Battery backup included
- 1Hz output pin
- 56 Bytes of Non-volatile memory available to user
Click links for:
Drivers:
- Example 16F88 code
- Arduino Tutorial. Thanks John Vaughters!
- Arduino Tutorial in Portuguese. Thanks Daniel Gonçalves!
- Builder Tutorial
Documentation and Downloads
