0.3MP VGA 30/60 FPS USB Camera Module
1) 640x480 @30/60FPS Resolution
2) 1/4inch MK0806 Sensor
3) Free Driver,Plug&Play
4) Supports Metal Box Housing
Features:
• 0.3MP VGA 640x480 Max up to 60fps
• No-Distortion Lense
• Support Plug-&-Play (UVC compliant) OTG Function.
• High Speed USB2.0
Specification | |
Image Device | Cmos Sensor MK0806 |
Pixel Size | 1/4 inch |
Resolution | 0.3MP 640(H) x 480(V) |
Output Format | MJPEG/YUY2 |
Shutter Type | Rolling Shutter |
Focus | Manually |
Focusing Range | 20mm to Infinity |
Protocol& Connection | Plug-&-Play (UVC compliant) |
Frame Rate | 640x480 @60fps MJPEG 640x480 @30fps MJPEG 320x240 @30fps MJPEG |
OTG | Support |
Minimum Illumination | 0.1 LUX |
WDR | 60dB |

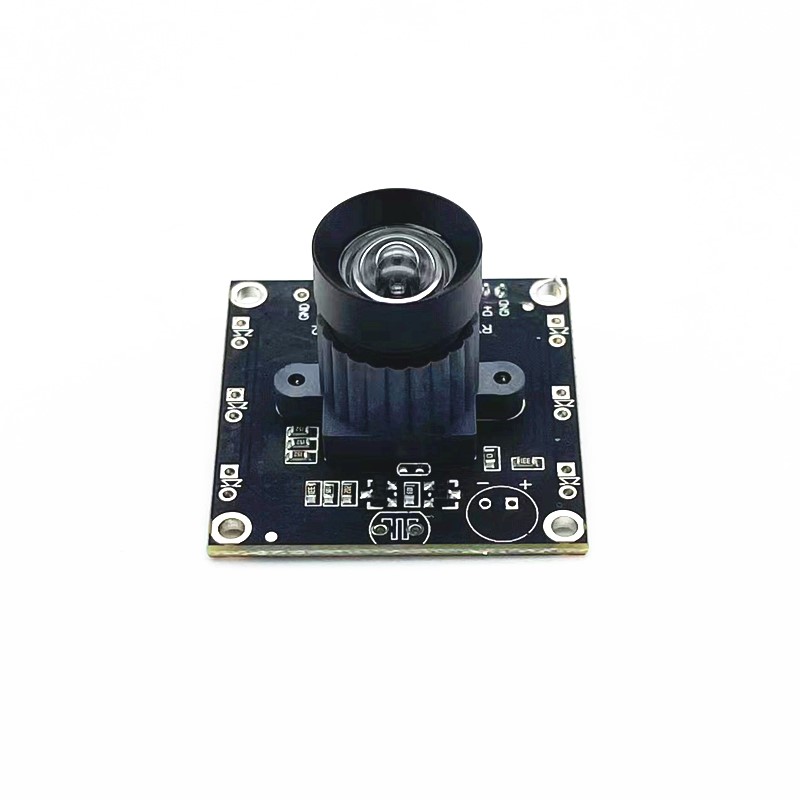

Lens | FOV 90 Degree No-Distortion lens(other can be Optional) |
IR-Cut Filter (IR Filter) | Default at 650nm, custom options 850,940nm. |
Night Vision | Supported with the use of white flash LED’s ONLY |
Microphone | Available upon request |
Controllable Features | Brightness,Contrast,Saturation,Hue,Sharpness,Gamma,White balance,Backlight Contrast,Exposure |
IR Illumination | Default not available, 12 or 24pcs 850nm/940nm IR LED board can be customized upon request |
Power Socket | 4Pin Socket, USB BUS Power |

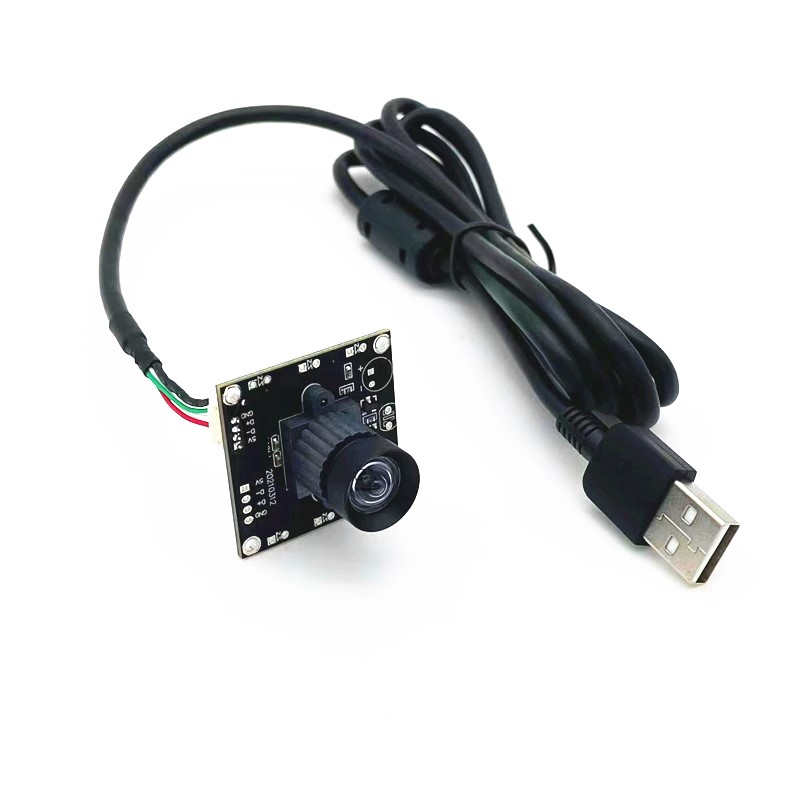

Cable Length | Default 1.2Meter (others upon request) |
Supported OS | Win XP/Vista/Win7/Win8/Win10 Linux with UVC (linux-2.6.26 or later) MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or higher with UVC |
General | |
Power Consumption | DC5V (±5%) |
Operating Temp. | -20°C~+70°C |
Storage Temp. | -30°C~+80°C |
Humidity | Less than 80% |
Dimension | 32x32mm |
Weight | Approx. 12 Grams or 0.4 Ounce |
Application or Tools | |
Windows OS | AMCAP etc. |
Linux OS | V4L2 etc. |
Mac OS | Facetime etc. |
Android OS | CameraFi etc. |

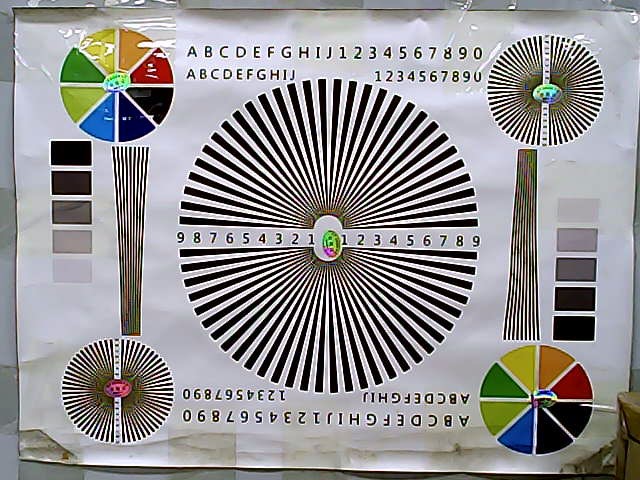

Sample picture captured with the camera
Camera LiveView
