PLEASE NOTE: NO LENS INCLUDED.

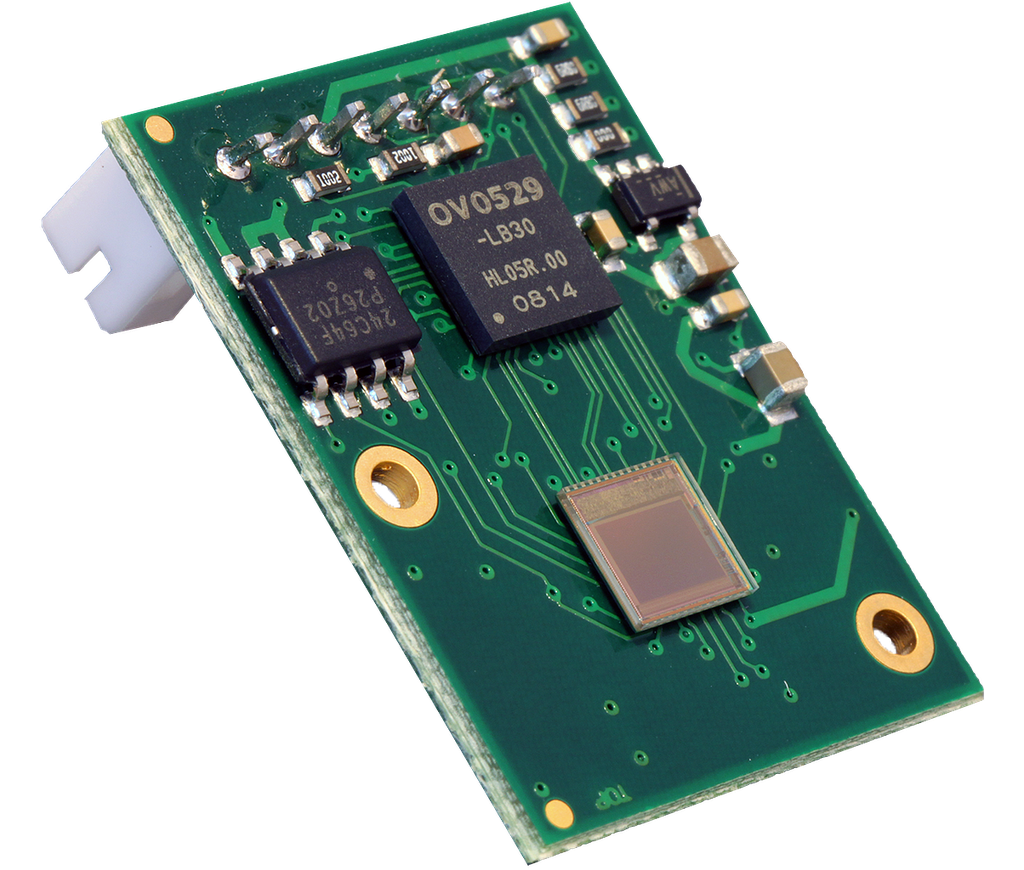

Description: This is the monochrome (B & W) version of the C329-SPI board using a OV07221 sensor instead of a OV07725.
This item is our replacement product for the C328V camera module which is phasing out. Please note the command-set of the C329BW and C328V is not identical.
The C329 SPI JPEG compression module performs as a video camera or a JPEG compressed still camera. Users can send out a snapshot command from the host in order to capture a full resolution single-frame still picture (OV07221 sensor). The picture is then compressed by the JPEG engine (OV529) and transferred to the host. This OV07221 sensor should be more sensitive to light, which might work well especially for night time vision with an IR array.
Features:
Small size 20 x 28mm
Adjustable resolution, Max VGA
3.3V operation
Low Power consumption 20 mA passive
SPI interface
Power Saving Mode
Multiple lens options
Multiple interface options
(Optional lenses available for this board)
Documentation and Downloads
- Datasheet (to be amended to reflect OV07221 sensor)
- User Manual (to be amended to reflect OV07221 sensor)
- Mounting Hole Schematic
