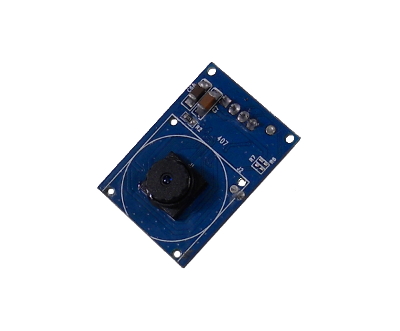

Description: The C407 is a camera module for various embedded image acquisition systems, such as: remote monitoring, vehicle monitoring, doorbell cams, camera phones, digital image recording, industry control, access control, etc. It is especially suited for low speed remote control image transmission system, such as phone lines, GPRS based on CDMA, & digital radio.
Features:
Small in size: 28mmX20mm (LxW)
0.3M. CMOS sensor, VGA resolution, down sample to QVGA
Low power consumption, 3.3V operation
UART interface support up to 115.2Kbps
Built-in JPEG CODE
Built-in lens, FOV 60°
Specifications:
Model C407
Pixel Size PAL:628 x 582 / NTSC:510 x 492
Image Sensor 1/5" , CMOS sensor OV7740
Baud Rate 9.6Kbps~115.2Kbps
Output TTL
Operating Voltage 3.3V‚ ±10%
Working Current 90 mA
Lens:
Construction: 3P+IR filter
Effective Focal Length: 2.7mm
F#:2.8
FOV: 60° - 60°-120° option
Distortion <1%
Relative illumination: 60% 3.44
Operating Temp. -20‚°C ~ +60‚°C
Dimension 28 mm x 20 mm (LxW)
