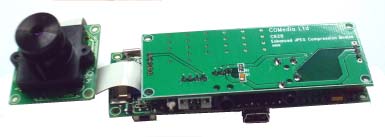

Description: The C628 Enhanced JPEG Module is a small, lightweight and low power consumption devices including most of the features of a Digital Still Camera (DSC) such as snapshot, video capture, date-time stamp, file management and others. By using external micro-controller, together with a well-developed, user-friendly command, people can build a custom made camera for specific application. Features UART interface for camera control Different baud rate setting to meet most of MCU and PC software Support Mega pixel sensor Optional SD connector Real time composite video data output USB mass storage
Specifications:
Image Sensor: MegaPixels CMOS sensor
Image Processor: ZORAN COACH-6E
On Board Memory: 64Mb
Storage: Resident 16MB NAND Flash
Video Capture: 640 x 480 (30 fps)
320 x 240 (30 fps)
Unlimited Motion JPEG capturing time depends on available memory space
Photo Resolution: 1280 x 960, 640 x 480 (JPEG format)
WhiteBalance: Normal / Daylight / Tungsten / Floures / Cloudy
UART Baud Rate: 115200, 57600
TV out: NTSC / PAL
USB Interface: USB 1.1 Mass storage mode
Supported OS: Win2000 / XP / ME
Power: DC 5V
IMPORTANT: These cameras are individually only sold for production purposes. Our policy is to sell the EV-Kit to experimenters / tinkerers, because it is much easier working with the camera as part of the EV-Kit. The EV-Kit does include a camera. Also only the EV-Kit includes a software driver. NO SOFTWARE IS SUPPLIED IF YOU ONLY BUY THE CAMERA MODULE.
Please note this is the camera module only. See the related products for the evaluation kit.
Documentation and Downloads
