Dual Unregulated Power Supply (Kit)

https://electronics123.odoo.com/web/image/product.template/3260/image_1920?unique=229dbc1
(0 review)

SKU : CPS114
Quantity on Hand : 2
Skill Level : Kit - Basic Soldering Required

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

CPS114 K114

5.99 5.99 USD 5.99

5.99

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

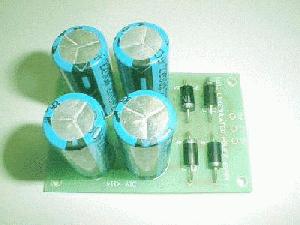

Description: Four on-board 100V, 3A diodes plus 2200uF/50V electrolytics to provide an unregulated power supply from a center-tapped transformer. Many power amplifiers require a dual DC power supply for their operation. Usually this consists of some diodes and electrolytic capacitors to convert an AC voltage to a +/- DC voltage. This simple kit does just that, with all the components mounted on a small PCB to avoid the usual spaghetti-wired mass (mess?). The kit is constructed on single-sided printed circuit board. (K114)
