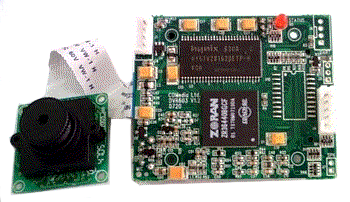

Description: This module has been designed for very simple application. It can be configured to a special DSC or DV with various settings for hobbyist making his own recording device.
Features:
Built in meg pixel image sensor
Real time Video output to TV
RTC, OSD
Storage to SD card
DV:
Image size VGA or QVGA
Variable frame rate setting 1, 10, 30fps
Variable recording duration 1 -99 sec
Preset capture schedule, daily or periodic
Trigger input for unlimited capture duration
Manual key input for arbitrary duration capture
DSC
High Quality JPEG image of mega pixel
High quality image setting 3M, 1.3M and VGA
Preset capture schedule, daily or periodic
External trigger input or keyboard snap shot
Kit Include:
DVR623 module with sensor
RCA + Power cable combo
3 pin cable
Keyboard
Hint: When the DVR623 is booted up it defaults to the PAL system which means the TV image will be scrolling in black and white. This makes it difficult to see the menu as it is scrolling. Following these key presses exactly will negate the need to read the scrolling menu and will to change the value to NTSC which will stop the scrolling:
Hold MODE key in for at least 3 seconds until you enter the system setup
Press DOWN key once.
Press OK key once.
Press RIGHT key once.
Press DOWN key once.
Press OK key once.
The system should now be in NTSC.
