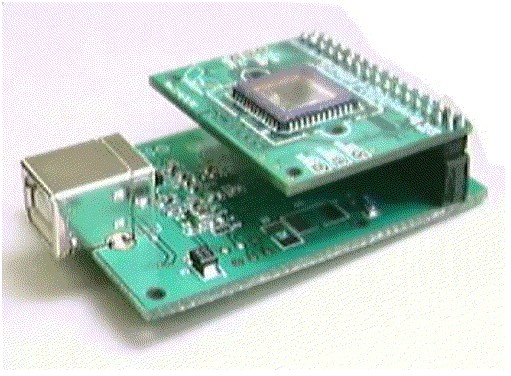

Description: EVU20 is the USB 2.0 evaluation board for digital camera module. It provides a high speed USB interface to upload video data from camera module to PC. The EV board is specially designed for evaluating the digital camera module using OmniVision image sensor.
The sensor board is not included and must be bought separately. This is only the EV Board that the sensor board plugs into.
Please Note: Supported on Win2K / XP SP2. We are not sure if it will work on any later versions of windows.
Features:
USB2.0 standard compliance
Transfer speed up to 480Mbps
Support on Win2K / XP SP2
Evaluate sensor from 1.3 to 5 Meg Pixel
Small board size (61 x 41 mm)
No external power is required
Support different sensor module
Still picture capture by hardware snap shot
Auto launch
Camera Modules supported:
| Model | Sensor | Resolution |
| AA2640 | OV2640 | 1600x1200 |
| AA5620 | OV5620 | 2592x1944 |
| AA7725 | OV7725 | 640 x480 |
| AA9653 | OV9653 | 1280x1024 |
| AA10620 | OV1062 | 768x506 |
