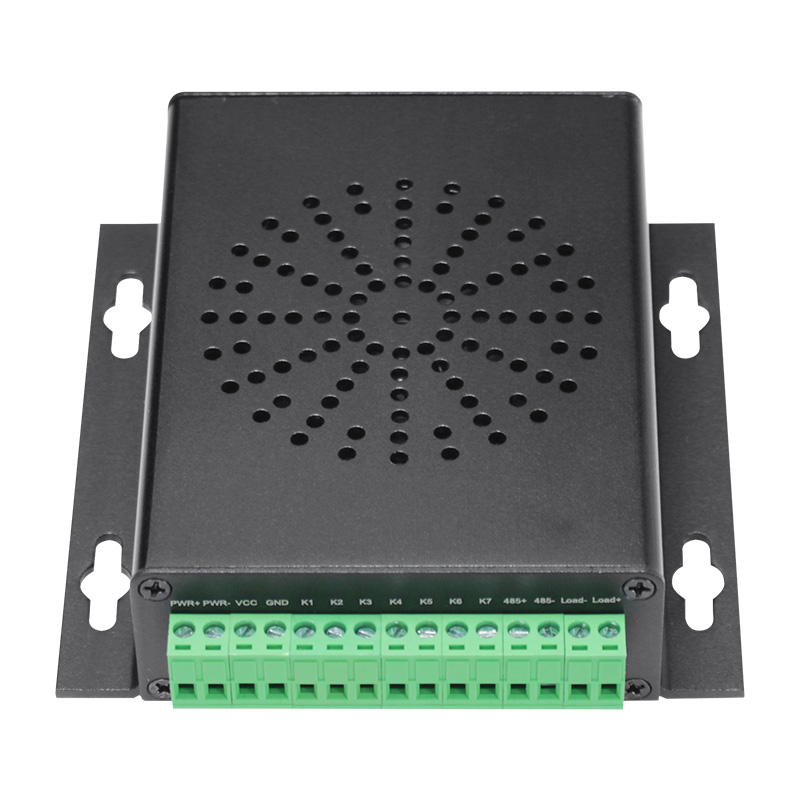

FN-AL7T (Mobus RTU version) is a high quality serial audio player. This product supports RS485 serial communication and adopts Modbus RTU standard protocol, which is used in all kinds of industrial equipment, security equipment, and etc. It supports changing audio files via USB. It also has the characteristics of stable and reliable performance, reusable and easy to use.
Description:
- Adopts RS485 Modbus RTU communication protocol.
- Built-in 8MB SPI flash memory and supports max. 32GB micro SD card.
- Update audio files easily via USB connection to computer. -It works as a USB flash drive on computer. No need or any program/software. USB cable included.
- Built-in class D 10W amplifier and sound is loud and clear. Module has a built in 5 watt 8 ohm speaker.
- Sound volume is adjustable through turning the potentiometer.
- Equipped with a 3.5mm audio jack for stereo output that can drive an earphone directly or connect to an external amplifier.
- Able to drive an external equipment like a warning light simultaneously when it is playing a sound.
- Able to set different communication baud rates.
- Wide range for power input (DC 12-40V).
Technical Parameters:
- Working voltage: 12-40V DC
- Working current: ≤1000mA
- Power Consumption: ≤10W
- Flash memory size: 8MB
- Audio format: MP3
![](/web/image/478016-35109e9d/Screenshot%20from%202024-07-24%2011-54-39.webp?access_token=09fd826e-3c2c-4e48-ae76-85fd2cf07f61)
