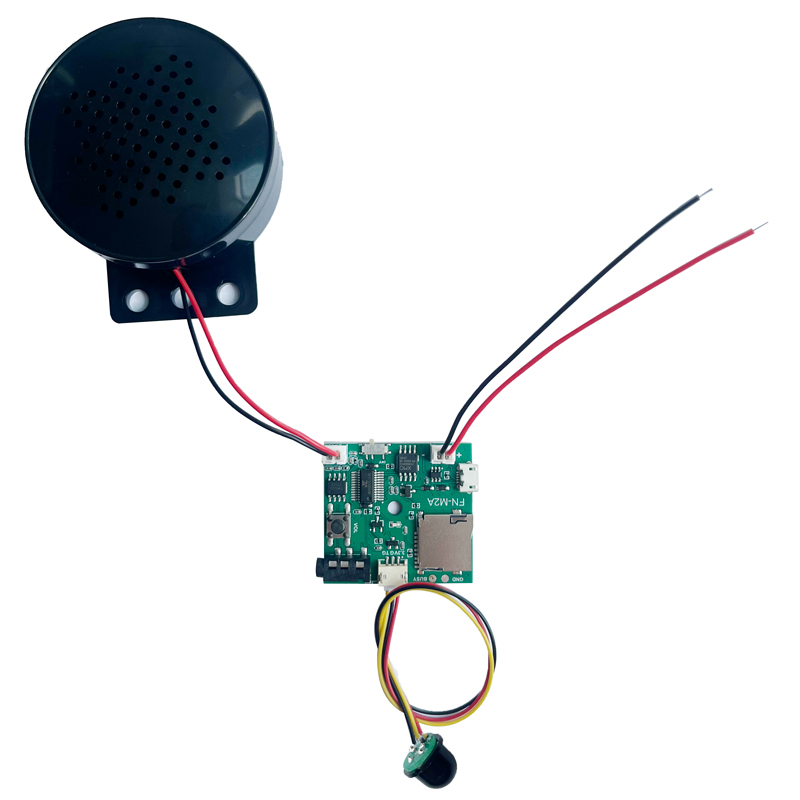

PLEASE NOTE: THIS VERSION HAS THE BLACK PIR SENSOR INCLUDED!!!
Click here for the WHITE PIR Version
Adopts a PIR motion sensor that can detect max. 3.5 meters distance. When it detects a moving human body, the device automatically plays back a sound message. Built-in a 4MBytes flash memory and supports max. 32GB micro SD card as well. Supports to store multiple audio files on the memory, and if there are multiple audio files it plays the next track in order after each activation from the PIR. Load audio files onto the flash memory through the micro USB port, which is connected with a computer. The on-board flash memory or micro SD card works as a USB flash drive on a computer. Built-in a 3W class D mono audio amplifier. Equipped with a good quality round speaker box. The sound volume is adjustable through the blue potentiometer.
Features:
- Adopts a PIR motion sensor that can detect max. 3.5 meters distance.
- When it detects a moving human body, the device automatically plays back a sound message fully.
- Built-in a 4MBytes flash memory and supports max. 32GB micro SD card as well.
- Supports to store multiple audio files on the memory, and if there are multiple audio files it plays the next track in order after each activation from the PIR.
- Load audio files onto the flash memory through the micro USB port, which is connected with a computer.
- The on-board flash memory or micro SD card works as a USB flash drive on a computer.
- Built-in a 3W class D mono audio amplifier.
- Equipped with a good quality round speaker box.
- Adjustable 6-level volume through pressing the volume button repeatedly.
- Equipped with a 3.5mm audio jack that is able to be connected with an external amplifier or active speaker.
- Busy signal output available that is able to work with a relay to control other external equipment like LED light, motor, etc. When the device is playing a sound, the Busy port outputs a signal in high level 3.3V
- Design with low power consumption and suitable to supply power using a 3.7V rechargeable lithium battery or 3 x AA / 3 x AAA alkaline batteries.
- Supports to supply power directly through the micro USB port as well as using a phone charger (5V 1A power adapter).
- Equipped with charging circuits and it is possible to charge the attached lithium battery through the micro USB port.
- The length of the wire between the board and the PIR sensor is 18cm.
- PCB size: 40mm x 37mm
- 2 Watt 8 Ohm Speaker
- The diameter of the speaker box: 58mm
- Height of the speaker box: 28mm
- Working voltage: 3.7-5V DC
- Working current: ≤200mA
- Standby current: ≤30uA
- Power Consumption: ≤3W
- On-board flash memory size: 4MBytes
- Audio format: MP3 or WAV
- The distance of PIR detection: ≤3.5 meters
- Detection angle: 120 degrees
- Max number of sound files supported is 999.
- When triggered it will complete the sound file and if multiple sounds are on the board it will cycle one after another after completion when the PIR is activated
