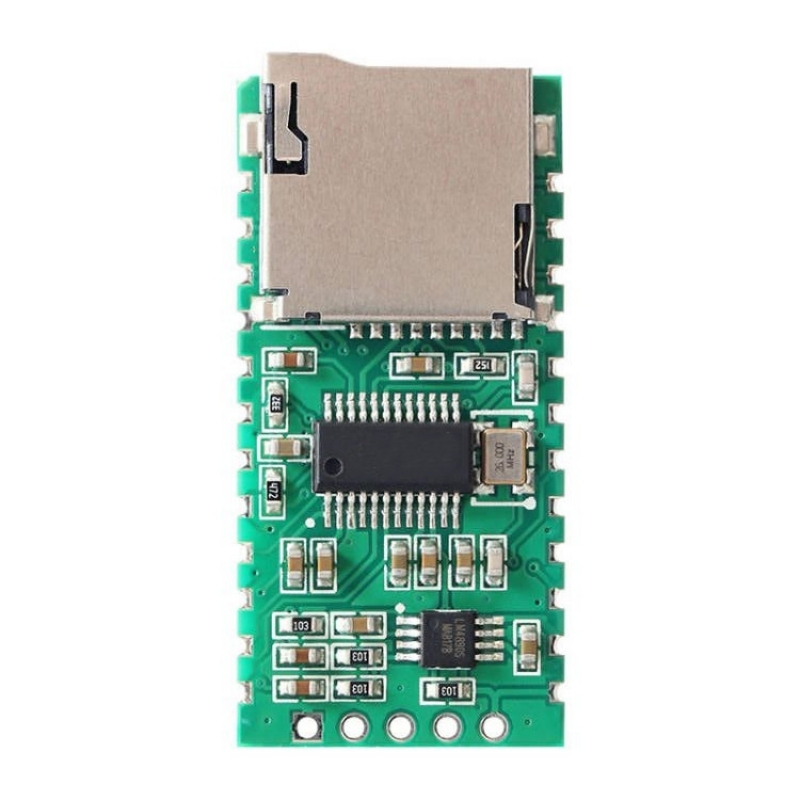

High Quality MP3 Audio Recorder and Player Module

SKU : FN-RM01

Quantity on Hand : 23

Skill Level : Assembled and Tested

ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

FN-RM01

This combination does not exist.

Button-Triggered Sound File Upload Solder Pad Connection Additional Memory Capable Load / Busy Output Serial Control

Features:

Supports microphone(mono), line-in(mono), and Aux-in(stereo) audio recording modes.
Supports AD keys control mode(play/pause, next, previous, record, and stop).
Supports standard UART serial communication control mode.
Supports playback of MP3, WAV, and WMA formats audio files, with great sound quality.
Works with most Windows, Mac, and Linux systems
Supports up to 48Khz sampling rate and 128Kbps bit rate of high-quality MP3 audio recording.
Supports USB sound card mode.
Use micro SD card and USB flash drive as the storage devices; supports max 32GB micro SD card and 32GB USB flash drive.
Supports FAT or FAT32 file systems.
Can freely replace sound files in the micro SD card via USB port.
Built-in 1W amplifier that can direct drive 8Ω / 1W speaker.
32 levels adjustable sound volume.
DC 5V power supply.
Dimensions: 38mm x 18mm

Documentation and Downloads
