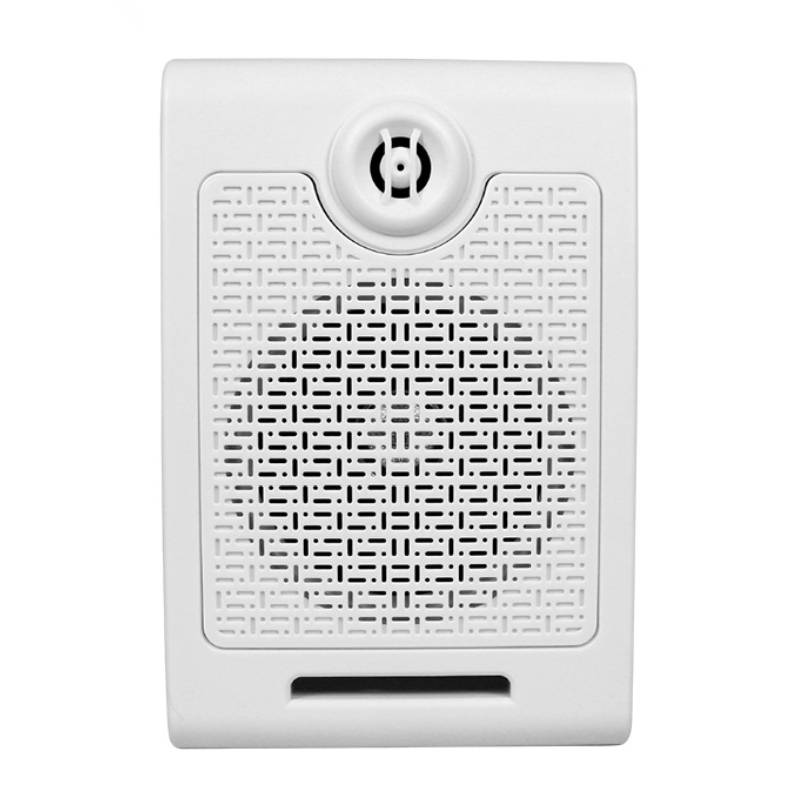

Triggerable 20 Watts MP3 Audio Player Wall Speaker (White) (4 Buttons)

https://electronics123.odoo.com/web/image/product.template/9869/image_1920?unique=5d04285
(0 review)

SKU : FN-W201
Quantity on Hand : 5
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

FN-W201

59.95 59.95 USD 59.95

59.95

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart
Button-Triggered Sound File Upload Terminal Block Connection Built-in Amplifier In Enclosure

Features:

  • Equipped with a high quality MP3 player with great sound quality.
  • Works with most Windows, Mac, and Linux systems
  • Built-in a 256MB flash memory by default, which is able to store a total of 4 minutes long MP3 files of 128Kbps.
  • Update MP3/WAV files to the flash memory easily through the micro USB port based on PC.
  • Play the sound messages by negative triggering.
  • 4 different trigger modes available.
  • Can be controlled by buttons, switches, or relays.
  • Built-in a 20watts class D amplifier for loud sound output.
  • Adjustable sound volume.
  • Dimensions 270mm (H) x 180mm (W) x 115mm (D)

Electrical Parameters:

  • Working voltage: DC 9V-24V
  • Standby current: 10ma
  • Working current: ≤800mA (Input: DC12V)
  • Power Consumption: ≤20W
  • Flash memory size: 4MB
  • Audio format: MP3/WAV

Examples of Wiring Connection:

1. Reference for Normal Use
Odoo CMS - a big picture


2. Reference for Automatic Playback When Powered Up
Odoo CMS - a big picture


Documentation and Downloads
