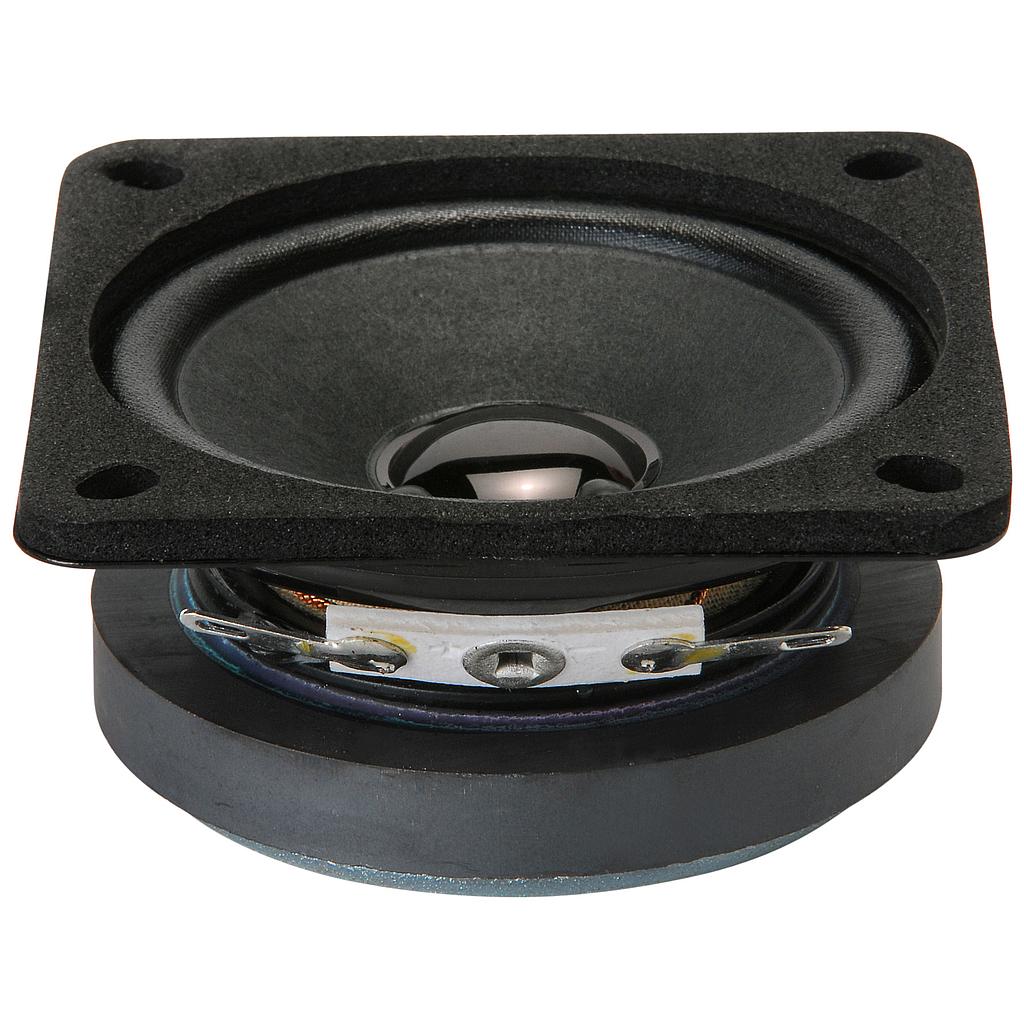

Description: Designed to fit the bill for a wide range of outdoor audio applications, Visaton's 2012 FRS7 2-1/2" full-range driver features a water resistant cone. 8-ohm impedance.
Features:
- Useful for background music and constant voltage PA systems
- 2.5", 8-ohm full-range speaker with linear response from 200 Hz to 20 kHz
- Paper cone with foam surround
- Water-resistant design
Product Specifications:
- Nominal Diameter: 2-1/2"
- Power Handling (RMS): 8 Watts
- Power Handling (max): 15 Watts
- Impedance: 8 ohms
- Frequency Response: 200 to 20,000 Hz
- Sensitivity: 88 dB 1W/1m
- Voice Coil Diameter: 0.5"
Thiele-Small Parameters:
| Resonant Frequency (Fs) | 250 Hz |
| DC Resistance (Re) | 7.2 ohms |
| Voice Coil Inductance (Le) | 0.3 mH |
| Mechanical Q (Qms) | 3.32 |
| Electromagnetic Q (Qes) | 2.08 |
| Total Q (Qts | 1.28 |
| Compliance Equivalent Volume (Vas) | 0.01 ft.³ |
| Maximum Linear Excursion (Xmax) | 0.75 mm |
Mounting Information:
| Overall Outside Diameter | 2.62" |
| Baffle Cutout Diameter | 2.4" |
| Depth | 1.18" |
Materials of Construction:
- Cone Material: Treated Paper
