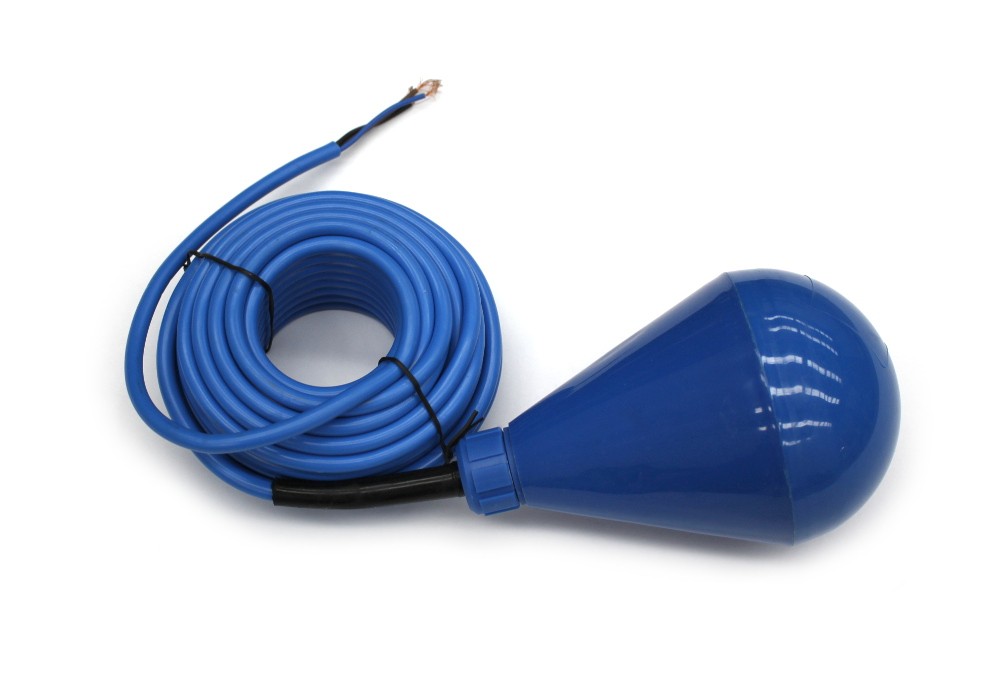

Description: Raw Water/Sewerage Float Switch with changeover switch and a 10M Cable.
Simple construction and reliable performance. A float switch is a great way to automatically turn any appliance such as a pump, on or off. A ball inside the tethered float switch simply changes position from top to bottom with the rising or falling motion it changes the floats angle, thus breaking or establishing the electrical circuit to turn the pump on or off This float switch can be used in raw water, sewerage, mild acid-base solutions, oils and situations requiring no pollution such as food and drinks. Operation voltage is 230VAC and current can be up to 10 A. The float switch has 3 wires and features both a normally open and closed contact.
Brown wire: Common
Black wire: Normally Closed (Closed when hanging)
Blue wire: Normally Open (Closed when floating)
Watch this video for a breif introduction to float switches: https://www.youtube.com/watch?app=desktop&v=SOheo8dRZVw
Specifications:
- Rated Voltage: 250 VAC
- Rated Current: 10 A resistive load, typically 3A inductive load
- Max temperature: 70
- Working pressure: Max 1 bar
- Mechanical Endurance: 100,000 times
- Electrical Endurance: 50,000 times
- Protection grade: IP68CS
- Cable Length: 10 m
- Float Diameter: 9 cm
- Float Length: 15 cm
