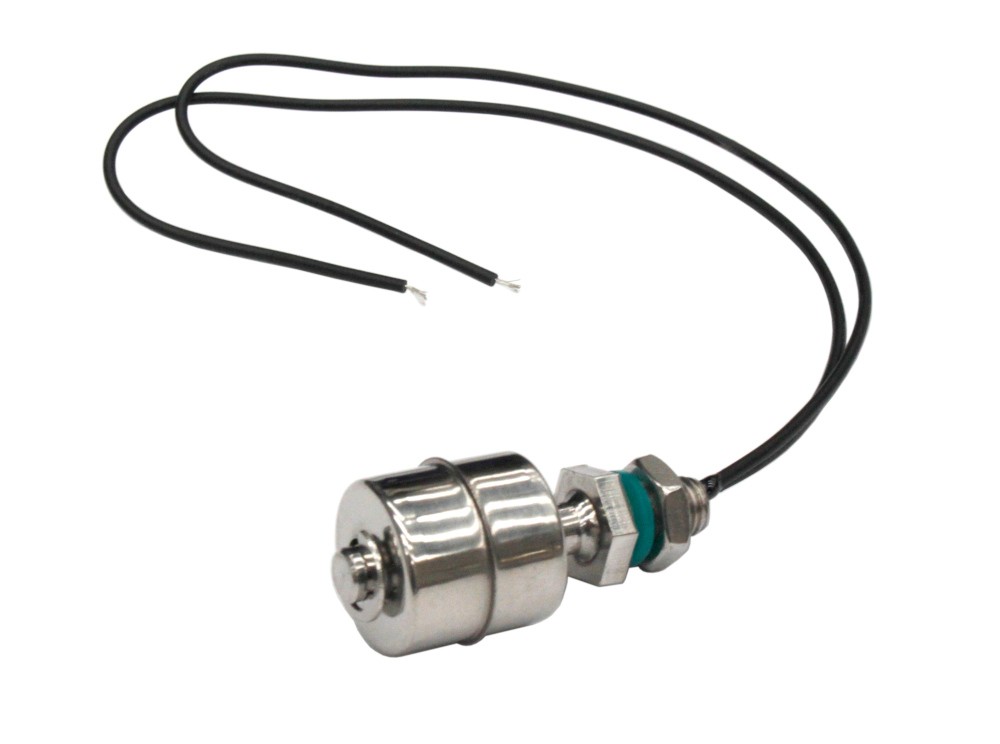

Description: Simple to use low cost stainless steel float switch. Can be used in tank level or sump controls. By default the float switch is closed at the bottom position. This can be altered by removing the circlip and flipping the float over and then reinsert the circlip
Specifications:
| Switch type: | SPST |
|---|---|
| Max Contact Rating: | 10 W |
| Max Switching Voltage: | 100 VDC |
| Rated current: | 0.5 A |
| Insulation impedance: | 10 MΩ |
| Applied temperature: | -30 to 125°C |
| Float Ball & Body Material: | SUS304 |
| Mounting hole: | M12 |
| Operate time: | 0.8 ms |
| Flying lead length: | 300 mm |
| Shaft Length: | 40 mm |
