Description: PEN Series photo sensor Retro-Reflective type with relay contact output. Operates over a distance of up to 5 metres and is 24 to 240 VDC/AC powered.

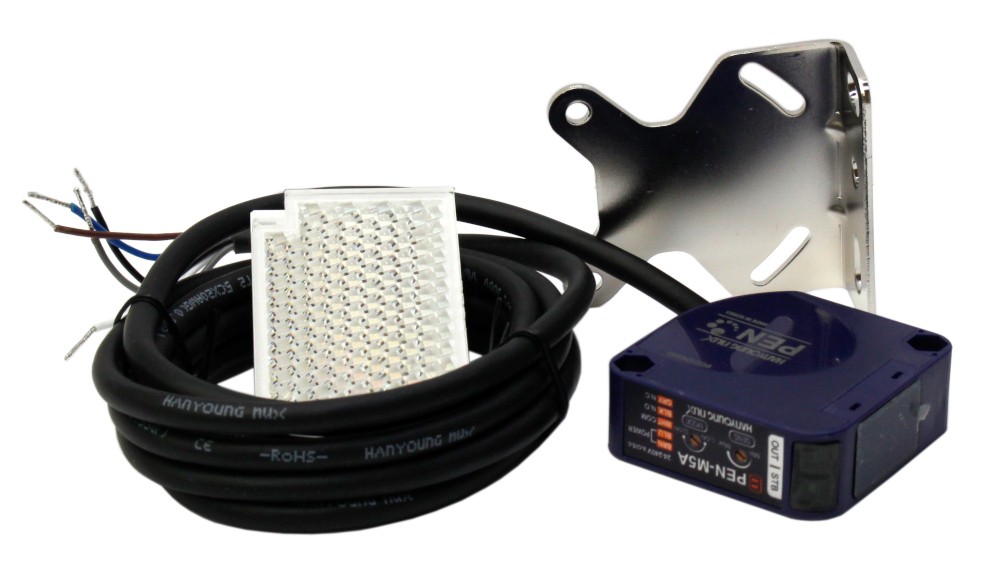

Hanyoung Nux's PEN Series photo sensor and retro-reflector with relay contact output.
The sensor operates over a distance of up to 5m and can be powered from 24 to 240 VDC or VAC.
Sensitivity and operation mode (Light ON / Dark ON mode) can be adjusted by a potentiometer.
Features:
- Supply Voltage Range: 24 to 240 VAC/DC
- Detecting Distance: 5 m
- Detects: Opaque Objects Ø60 mm
- Response Time: 20 ms
- Output: Relay contact 30 VD, 5 A / 240 VAC, 5 A resistive load
- Degree of Protection: IP64
- Temperature/Humidity: -20 to + 60 °C / 35% to 85% RH
- Manufacturer Part No: PEN-M5A
