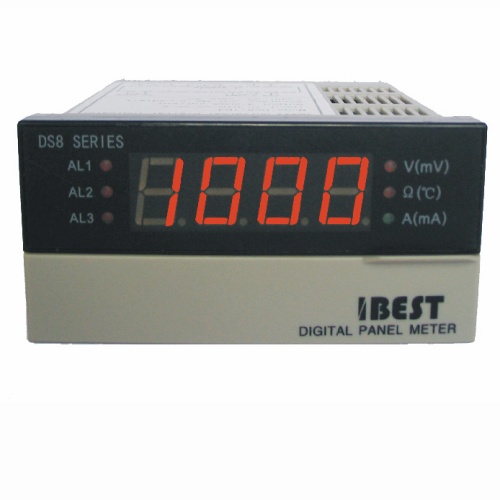

Description: Panel mount process indicator accepts thermocouples (K, J, E, T, B, R, and S), 0 to 75 mV, 4 to 20 mA, Pt100 RTD, 0 to 10 VDC signals. Isolated 24 VDC output, 4 to 20 mA analog output for retransmission and two alarm relays. 24 VDC powered.
A budget priced panel meter which can be used with Thermocouples, RTD, 4-20mA and voltage signals. Comes with a 4-20mA analog retransmission output. Programmable using the keypad.
A budget priced panel meter which can be used with Thermocouples, RTD, 4-20mA and voltage signals. Comes with a 4-20mA analog retransmission output. Programmable using the keypad.
Features:
Panel mount indicator, size: 48 × 96 × 100 mm
Universal input: TC, RTD, mA, mV, 0 to 5 VDC, and 0 to 10 VDC signals
2 alarm relays, contact capacity: AC 250V/3A or DC 30V/3A (resistive load)
Isolated analog output: 0 to 10 mA or 4 to 20 mA, configurable by software.
Isolated auxiliary 24 VDC output for powering sensors.
24 VDC powered, power consumption ≤5 VA
| Power Supply | 18 to 30 V DC or AC |
|---|---|
| Power Consumption | ≤5 VA |
| Accuracy | ±0.3% F.S |
| Sampling Rate | <8 times/s |
| Input | B, E, J, K, R, S or T type T/CPt100 RTD, 0 to 75 mV, 0 to 10 VDC, 4 to 20 mA |
| Alarm Outputs | 2 SPST Relays |
| Relay Contact Rating | 3 A at 250 VAC or 30 VDC (resistive) |
| Analog Output | Selectable 4 to 20 mA or 0 to 10 mA |
| Transmitter supply | Isolated 24 VDC, 30 mA |
| Operating Ambient Temperature | 0 to 50 °C |
| Storage Temperature | -10 to 60 °C |
| Humidity | 35 to 85% |
| Weight | 500 g |
