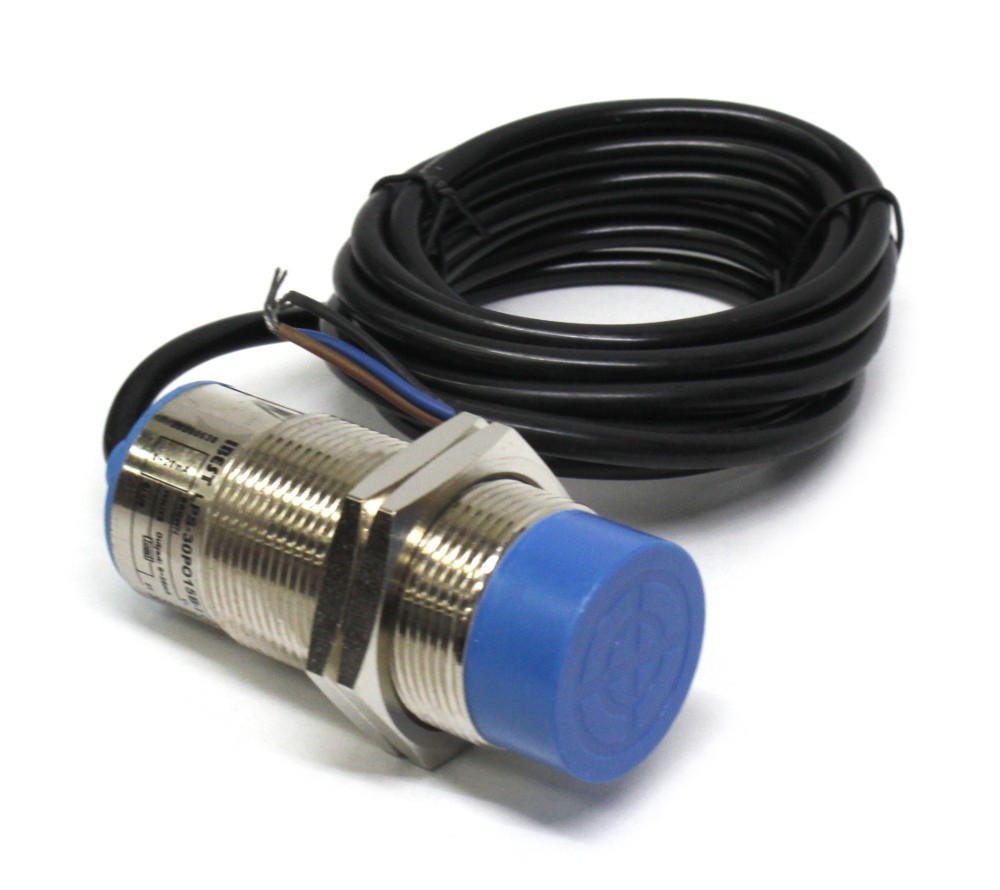

M30 Analog Proximity Sensor, 4 to 20 mA output (LPS-30PO15B-I)

https://electronics123.odoo.com/web/image/product.template/8642/image_1920?unique=40cf825
(0 review)

SKU : IBS-2300
Quantity on Hand : 0
Skill Level : Component or Part

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

IBS-2300 LPS-30PO15B-I

$ 34.95 34.95 USD $ 34.95

$ 34.95

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart
Contact Us

LPS-30PO15B-I, M30 non-flushed (unshielded) analog proximity Sensors with 4 to 20 mA output and 30 mm in diameter

Unshielded analog sensor switch that has a linear current output signal which changes in proportion to target distance from the damping surface. The curve is linear over the entire working range, please refer to the "Current Output Curve" graph below in the documents section for more details.

Specifications:
Supply Voltage: ​ ​ ​ ​ ​15 to 30 VDC
Current Consumption: ​ ​ ​≤ 20 mA
Output Current(I): ​ ​ ​ ​4 to 20 mA
Load Resistance(Current/Voltage): ​300Ω/1K
Max.Fluctuant Voltage: ​ ​ ​≤ 5%
Dimension: ​ ​ ​ ​ ​ ​M30*1.5
Installation: ​ ​ ​ ​ ​ ​Non-Flush(unshielded)
Mounting distance Sn: ​ ​ ​15 mm
Detect distance Sa: ​ ​ ​ ​1.5...15 mm
Detect Object(Q235 steel) mm: ​ ​45*45*1t
Ambient Temperature: ​ ​ ​-10...+55°C
Detect Status: ​ ​ ​ ​ ​Red LED Indicator
IP Rating(IEC60529): ​ ​ ​ ​IP67
Housing Material: ​ ​ ​ ​Nickle plated brass
