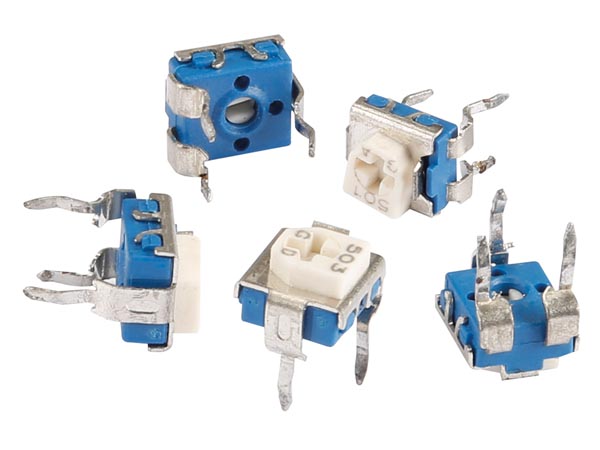

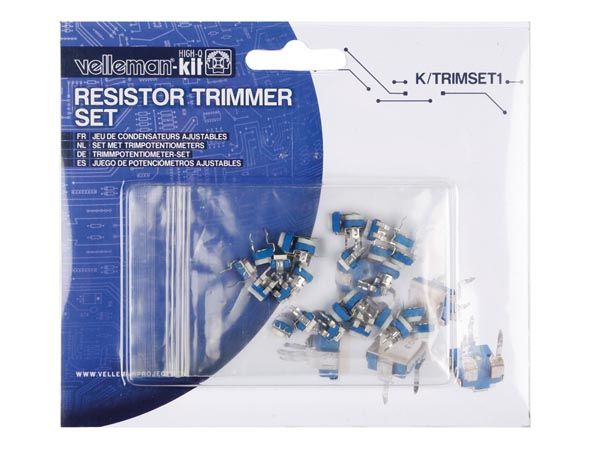

Features:
- Contents:
- 5 x 470 Ohm
- 5 x 1k Ohm
- 5 x 10k Ohm
- 5 x 47k Ohm
- 5 x 100k Ohm
- 5 x 470k Ohm
- 5 x 1M Ohm
Specifications:
- Power: 0.1 W
- Temperature range: -10°C to +70°C
- Resistance tolerance: ± 30%
- Operating voltage: 50 V max.
- Rotation angle: 200° ± 20°
- Soldering heat resistance: 260 °C < 3 sec.
- Standard lifecycle: 100 cycles
Documentation and Downloads
- Datasheet
- Content Note (mark/value)
