Features:

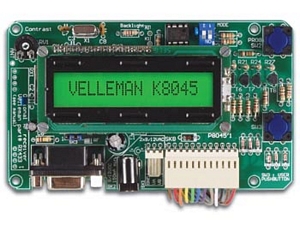

Add an LCD display to any low-tech application and make it look high-tech !
Replace up to 9 indicators or lamps by one single backlit LCD
Recall messages simply by pressing a button
Inputs accept dry contacts, open collectors and logic levels
No programming skills required !
Store up to 9 sixteen-character messages in non-volatile EEPROM memory
4 Operating Modes:
1) Display the status of all inputs simultaneously
2) Display all active inputs
3) Display active input with highest priority
4) Display text messages in a 'tickertape'-fashion
A default message can be entered which is displayed when no inputs are active
Messages can be transferred to the K8045 from any PC or terminal
Message transfer software is available from www.velleman.be
Wireless data transfer between PC/terminal and K8045 is possible with optional RX/TX433 modules
1 On-board pushbutton available for your application
Specifications:
Inputs: 8 inputs (24Vmax)
Display: 16 character 1 line supertwist backlit LCD
Communication: RS232 serial 2400/N/8/1 no handshaking
Power supply: 9-12V DC / 150mA adapter or 2 x 9V AC / 150mA transformer
Dimensions: 4.9" x 2.9" x 1.2"
Documentation and Downloads
