Description: This is a simple 4 to 20 mA output loop-powered temperature sensor with a measurement range from -10°C to +125°C designed for monitoring RTU and PLC cabinet temperatures.

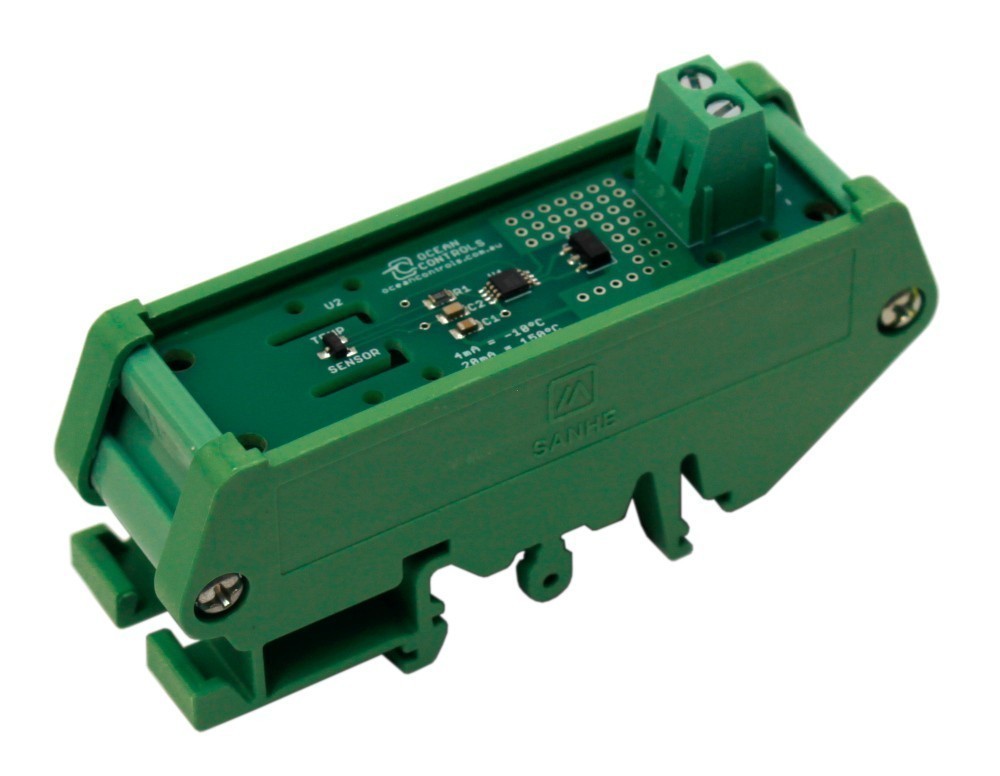

KTD-267 is the KTA-267 with a DIN rail mounting.
Features:
- Power Supply: Up to 40 V Loop Voltage, 8.1 V Compliance Voltage
- Maximum Current: 20mA
- Output: 4 to 20 mA output
- Measurement Range: -10°C to 150°C
- Typical Accuracy: ±0.5°C
- Worst case Accuracy of ±2°C at 25°C
- Worst case Accuracy of ±3°C at 150°C
- Ideal for measuring cabinet temperature for RTUs and PLCs
- Operating Temperature: -10°C to 70°C
- DIN Rail Mounting Option
- Dimensions: 90L x 22W x 47H (mm)
