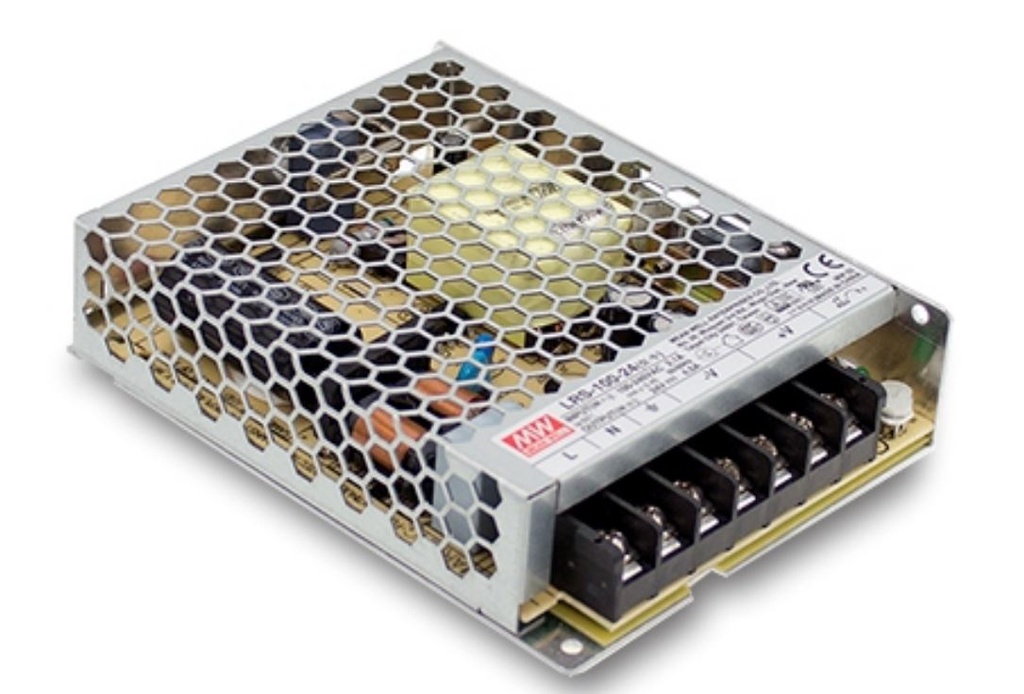

MEAN WELL LRS-100-12 AC to DC Enclosed Single Output Power Supply 12VDC 8.5A

102W 12V 8.5A Single Output High Efficiency Power Supply

12 Volts @ 8.5 Amps

Features:

• Withstand 300 VAC surge input for 5 seconds
• No load power consumption <0.5W
• Miniature size and 1U low profile
• High operating temperature, up to 70°C
• Protections: Short circuit / Overload / Over voltage / Over temperature
• Cooling by free air convection
• Compliance to IEC/EN 60335-1 (PD3) and IEC/EN 61558-1, 2-16 for household appliances
• Operating altitude up to 5000 meters
• Withstand 5G vibration test
• High efficiency, long life and high reliability
• LED indicator for power on
• 100% full load burn-in test
• 3 year warranty
• Applications
• Industrial automation machinery
• Industrial control system
• Mechanical and electrical equipment
• Electronic instruments, equipment or apparatus

• Household appliances

Specifications:

• Output Voltage 12 VDC
• Output Current 8.50 A
• Input Voltage 85 VAC to 264 VAC
• Input Frequency 47 Hz to 63 Hz
• Output Connector Type Screw Terminal Block
• Length 5.08 in.
• Width 3.82 in.
• Height 1.18 in.
• PFC Function No
• Agency Approvals UL, CUL, TUV, CB, CE, EN, EAC, CCC
• Maximum Input Current 1.9 A
• Number of Outputs 1
• Power Rating 102 W
• Efficiency 88%
• Manufacturer Series LRS-100
• Minimum Operating Temperature -30°C
• Maximum Operating Temperature 70°C
• Minimum Isolation Voltage 3750V
• Color Silver
• Type Auto Switching SMPS
• Style Enclosed
• Output Voltage (Channel 1) 12 VDC

• Output Current (Channel 1) 8.5 A
