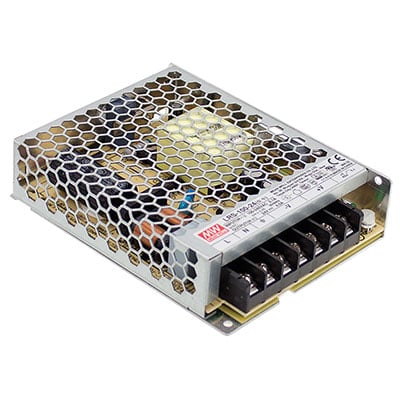

100W 24V 4.2A Enclosed Single Output High Peak Power Supply
Features:
- Universal AC input - full range
- Withstand 300 VAC surge input for 5 seconds
- Up to 200% peak power capability
- Protections: Short circuit, overload, over voltage
- Over voltage category III (OVC III)
- Cooling by free air convection
- Miniature size and 1U low profile
- Compliance to IEC/BS EN/EN61558-1 and 62368-1
- Operating altitude up to 4000 meters
- Withstand 5G vibration test
- LED indicator for power on
- No load power consumption <0.5W
- High operating temperature up to 70°C
- High efficiency, long life and high reliability
- 3-year warranty
Overview
LRS-100N2 series is a 100W single-output enclosed type power supply with a 30mm low profile design. Adopting the full range 85-264VAC input, the entire series provides an output voltage line of 12V, 24V, 36V, and 48V. In addition to the high efficiency up to 90.5%, the metallic mesh case design enhances the heat dissipation and allows it to operate from -30°C to +70°C under air convection without a fan. Delivering an extremely low no load power consumption (less than 0.5W), it allows the end system to easily meet the worldwide energy requirement.
LRS-100N2 has the complete protection functions and 5G anti-vibration capability and is compliant with international safety regulations such as TUV BS EN/EN62368-1, BS EN/EN61558-1/-2-16, UL62368-1 and GB4943. LRS-100N2 series serves as a high price-to-performance power supply solution for various industrial applications. Moreover, it can provide 200% short-duration peak power for motor applications and electromechanical loads requiring much higher power during start-up.
Applications
Industrial automation machinery
Industrial control systems
Mechanical and electrical equipment
Electronic instruments, equipment or apparatus
For inductive and capacitive loads
Specification:
- Output Voltage 24 VDC
- Output Current 4.20 A
- Input Voltage 85 VAC to 264 VAC
- Input Frequency 47 Hz to 63 Hz
- Output Connector Type Screw Terminal Block
- Length 5.08 in.
- Width 3.82 in.
- Height 1.18 in.
- PFC Function No
- Agency Approvals UL, CUL, TUV, CB, CE, EN, EAC, UKCA, C-Tick, CQC
- Maximum Input Current 2.1 A
- Number of Outputs 1
- Power Rating 100.8 W
- Efficiency 90%
- Manufacturer Series LRS-100N2
- Minimum Operating Temperature -30°C
- Maximum Operating Temperature 70°C
- Minimum Isolation Voltage 4000V
- Color Silver
- Type Auto Switching SMPS
- Style Enclosed
- Output Voltage (Channel 1) 24 VDC
- Output Current (Channel 1) 4.20 A
