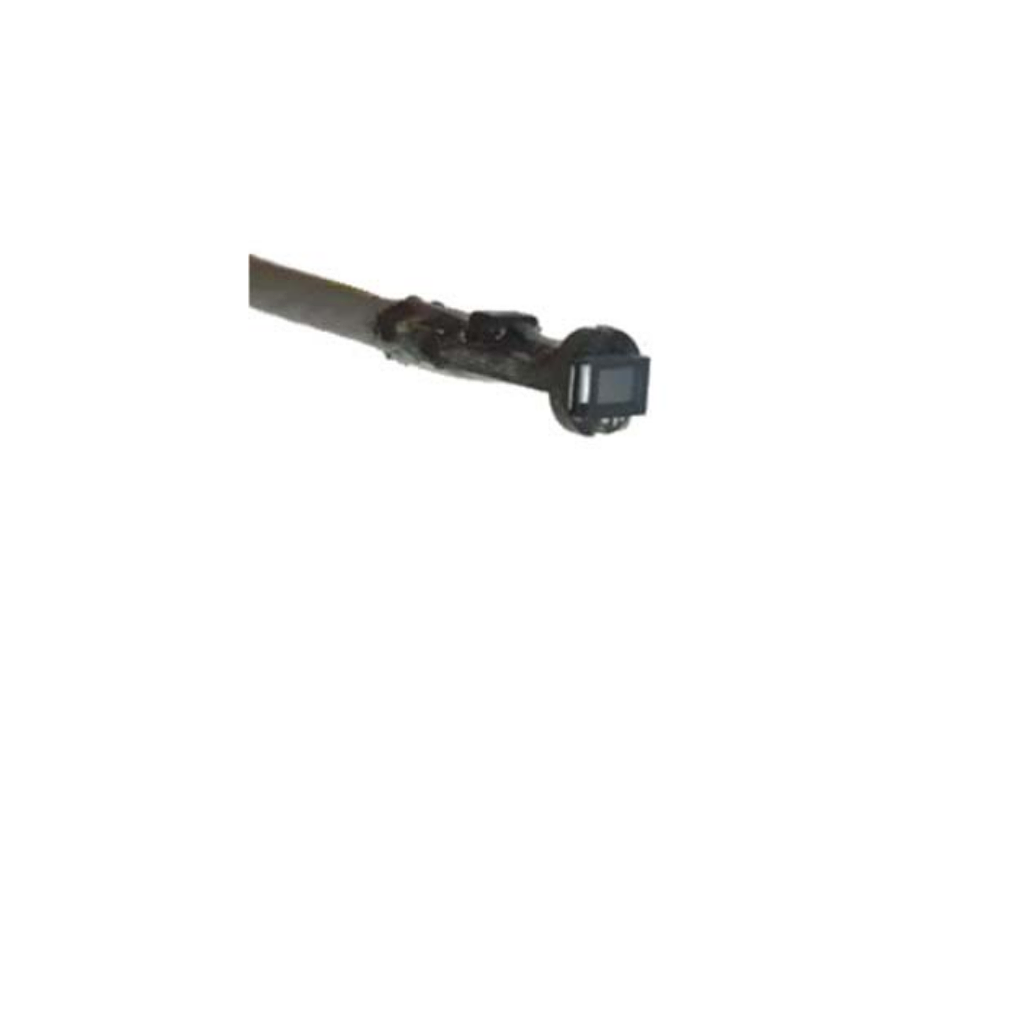

Description: This is one in a family of products based on the most advance CMOS mixed signal technology. It integrates image array, signal processing, timing and control circuitry, all on a single chip. It is ideal for applications requiring a small footprint, low power and low cost.
Small Tip Size: 3.8 OD x 8mm!
NOTE: This camera does not come with a lens. End user to supply and mount own suitable lens.
Features:
Tip size 3.8 OD x 8mm
Resolution: HD1280x720 pixels
Operation voltage 2.8V
MIPI interface
Low power consumption
Cable size: 1.8mm OD
Cable length: 1M (upto 4M)
Application Example:
Inspection device
Endoscope
Pin Description (tentative):
VDD 2.8VDC
GND Ground
CLK Clock input from backend
EVD D 1.5VDC
SDA I2C data
SCL I2C clock
MCP MIPI clock Positive o/p
MCN MIPI clock Negative o/p
MDP MIPI Data Positive o/p
MDN MIPI Data Negative o/p
PLEASE NOTE: Because of the extremely small size and delicate nature of this camera we cannot accept any damaged cameras back for exchange or refund.
NOTE: Backend Module Selection is the USB-C8207 you will need this to operate this module.
