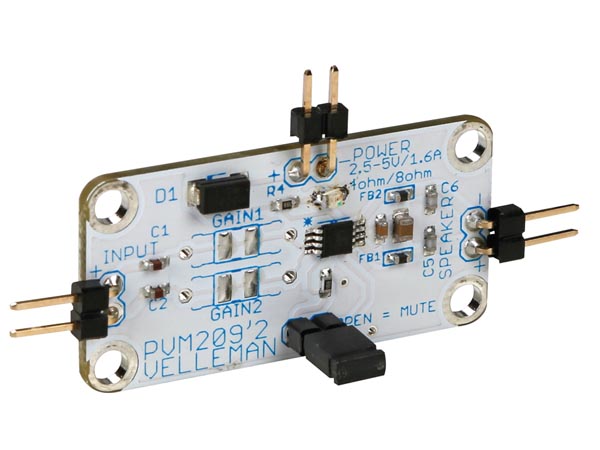

Description: Small but powerful amplifier for a wide range of applications, for example MP3 player, melody generator, intercom, sound effects, headphones, radio receiver, PC sound card, music instrument...
Features
- small size
- very efficient, ideal for battery powered applications
- comes with board-to-wire connectors
- connector pitch matches standard breadboard pitch
- presettable gain
- overload and short-circuit protections
- single supply
Specifications
- max. output power: 2.8 W (4 Ohm) or 1.6 W (8 Ohm)
- power supply: 2.5 - 5 VDC
- max. current consumption: 1.6 A (4 Ohm) - 0.8 A (8 Ohm)
- default gain: 18 dB (adjustable)
- THD: 0.02 % (1 W / 8 Ohm / 1 kHz)
- S/N ratio: 98 dB (1.4 W / 8 Ohm)
- shutdown current: 20 nA
- dimensions: 40 x 20 mm / 1.6 x 0.8"
