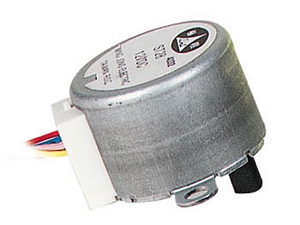

12VDC Stepper Motor 32mA

Features:

* applications:
o office machines
o automatic machines
o split air conditioners

Specifications:

* resistance: 280 ohms
* rated voltage: 12V DC
* current: 32mA
* impedance: 380ohm
* phase: 4
* step angle / step: 5.625° / 64
* reduction ratio: 1/64
* detent torque: 4.86oz-in
* pull-in torque: 4.17oz-in
* max. starting pulse rate: 550pps
* max. slewing pulse rate: 90pps
* temperature range: 77°F
* noise: 40dB
* cable: 420mm AWG 1095#28
* terminal: JST SPH-002T-P0.5S
* insulation strength: AC 600V - 1 sec cut-off current: 10mA
* colors
o B1: B1 : pink
o 2: A1 : orange
o 3: A2 : yellow
o 4: B2 : blue
o 5: GND : red
o 6: GND2 (for MOTS2) : brown
