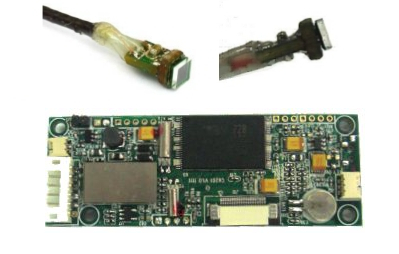

Description: This is one in a family of products based on the most advanced CMOS mixed signal technology. It integrates image array, signal processing, timing and control circuitry, all on a single chip. It is ideal for applications requiring a small footprint, low power and low cost.
The camera is supplied with a C6201 back-end included. The C6201 is specially designed as an interface for the MuC30x-series micro camera modules. It has a built-in DSP as an interface for the MuC30x-series. It integrates image array, signal processing, timing and control circuitry, all on a single chip. It is ideal for applications requiring a small footprint, low power and low cost.
Extremely Small Size: 2.63 mm diameter!
Features:
- 2.63mm diameter for the sensor module
- 1.2mm diameter cable included: Length - 1m
- OV6930 CMOS image sensor
- Resolution 400x400
- 6pin connection
- Direct interface to TV monitor
- NTSC / PAL compatible (You are buying the NTSC version. Contact us if you need PAL version instead.)
- Size : 25 x 70mm
- Low power consumption 120mA
- Plug and play
- DC5V
PLEASE NOTE: No lens is included with this camera. You will have to find and attach a suitable lens. We may be able to accomodate your lens design/specs. Please email us your spec requirements for a quote. Also because of the extreme small size and delicate nature of this camera we cannot accept any damaged cameras back for exchange or refund.
