MuC301A-C3842 Combo Camera Module

Description: This is one in a family of products based on the most advanced CMOS mixed signal technology. It integrates image array, signal processing, timing and control circuitry, all on a single chip. It is ideal for applications requiring a small footprint, low power and low cost.

Extremely Small size: 2.63 mm diameter!

Features:

• 2.63mm diameter for the sensor module
• Cable diameter 1.2mm

• OV6930 CMOS image sensor
• Resolution 400x400
• 6pin connection
• EV program provided
• USB2.0 compatible
• size : 14.5 x 55 mm
• low power consumption 60mA
• 1m cable included

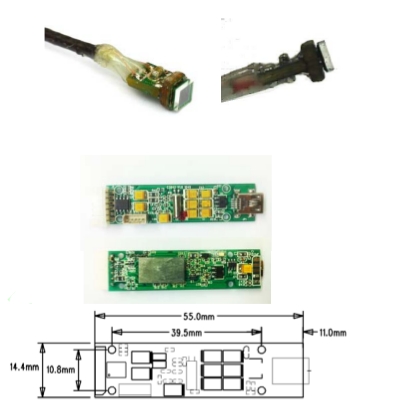

The camera is supplied with a C3842 back-end included. The C3842 is specially designed as an interface for the MuC30x series micro-camera modules. It has a built-in USB 2.0 transceiver. A demo program has been designed for evaluation purpose.

PLEASE NOTE: No lens is included with this camera. You will have to find and attach a suitable lens. We may be able to accommodate your lens design/specs. Please email us your spec requirements for a quote. Also because of the extreme small size and delicate nature of this camera we cannot accept any damaged cameras back for exchange or refund.
