Description: This is one in a family of products based on the most advance CMOS mixed signal technology. It integrates image array, signal processing, timing and control circuitry, all on a single chip. It is ideal for applications requiring a small footprint, low power and low cost.

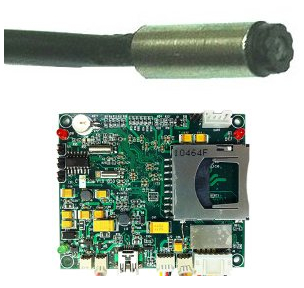

The camera is supplied with a C6203 back-end included. The C6203 is specially designed as an interface for the MuC30x-series micro camera modules. It has a built-in DSP as an interface for the MuC30x-series. It integrates image array, signal processing, timing and control circuitry, all on a single chip. It is ideal for applications requiring a small footprint, low power and low cost.
Extremely Small size: 3.5mm outside diameter!
Features:
- OD3.5mm
- Lens included (mounted)
- FOV 120deg
- Fixed focus
- 2.63mm diameter for the sensor module
- 2.0mm diameter cable included: Length - 1m
- OV6930 CMOS image sensor
- Resolution 400x400
- 6pin connection
- Direct interface to TV monitor
- PAL/NTSC TV system
- JPG or AVI recording
- VGA 30fps
- DC5V
- Storage to SD card, up to 16G
- Includes keyboard and cables
