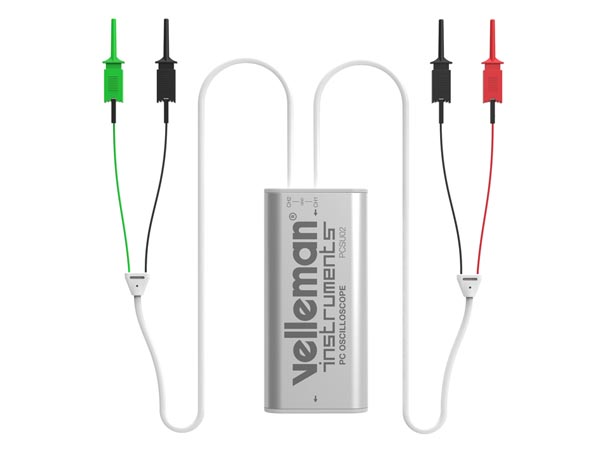

Mini oscilloscope for PC, 2 channels, with USB connection

Description: Oscilloscopes are expensive and complicated instruments? Not this one!
This small and easy to use 2 channel oscilloscope has all the features of a full blown oscilloscope and it also has a bandwidth of 500 kHz ±3 dB!

Complete with instructions (download), test leads and software (download) and it comes in a design enclosure.

Features:

• Test leads
• Software download
• USB cable included
• Design enclosure

Specifications:

• Oscilloscope:
  • Bandwidth: DC to 2 x 500 kHz ±3 dB
  • Input impedance: 100 kO /20 pF
  • Maximum input voltage: 30 V(AC + DC)
  • Time base: 5 µs to 500 ms per division
  • Input range: 100 mV to 5 V/division
  • Input sensitivity: 3 mV display resolution
  • Readouts: true RMS, dBV, dBm, p to p, Duty cycle, Frequency…
  • Record length: 2 x 1k samples
  • Sampling frequency: 50 Hz to 2.5 MHz
  • Sample history function
  • Auto set-up function
  • Pre-trigger function: on 50 µs/div .. 500 ms/div ranges
  • Persistence options: colour graded, variable and infinite
• Spectrum Analyzer:
  • Frequency range: 0 .. 125 Hz to 125 kHz
  • Operating principle: FFT (Fast Fourier Transform)
  • FFT resolution: 512 lines
• Transient Recorder:
  • Timescale: 20 ms/div to 2000 s/div
  • Max. recording time: 9.4 h/screen
  • Automatic storage of data
  • Record and display of screens
  • Max. number of samples: 100/s
  • Min. number of samples: 1 sample/20 s
• General Information:
  • Markers for: amplitude/voltage and frequency/time
  • Input coupling: DC and AC
  • 8 bit resolution
  • Storage of display and data
  • Dimensions: 85 x 40 x 14 mm
• Minimum System Requirements:
  • Windows® XP, Vista, 7, 8 and 10
  • Mouse (or mouse pad)
  • Free USB port 1.1 or 2.0
