Use this counter with Velleman's PEM7D or PEM7DW motion detector and get insight into your surroundings like never before! This counter allows you to accurately track the number of detections from your sensor. Suitable for various applications such as counting people at an entrance or in a restaurant.
+ Accurate measurements: This sensor counter provides accurate measurements of the number of detections.
+ Real-time data: This counter tracks the number of detections in real-time, giving you instant insight into your sensor's activity.
+ Easy installation: The counter is quick and easy to install. All necessary mounting accessories are included.
+ Optimal analysis: By tracking the number of detections, this counter helps you identify trends, leading to more efficient use of your motion detector.
- Sensing type: counter for access control system PEM7D
- Applications: garage door, entrance, supermarket, restaurant, warehouse, ...

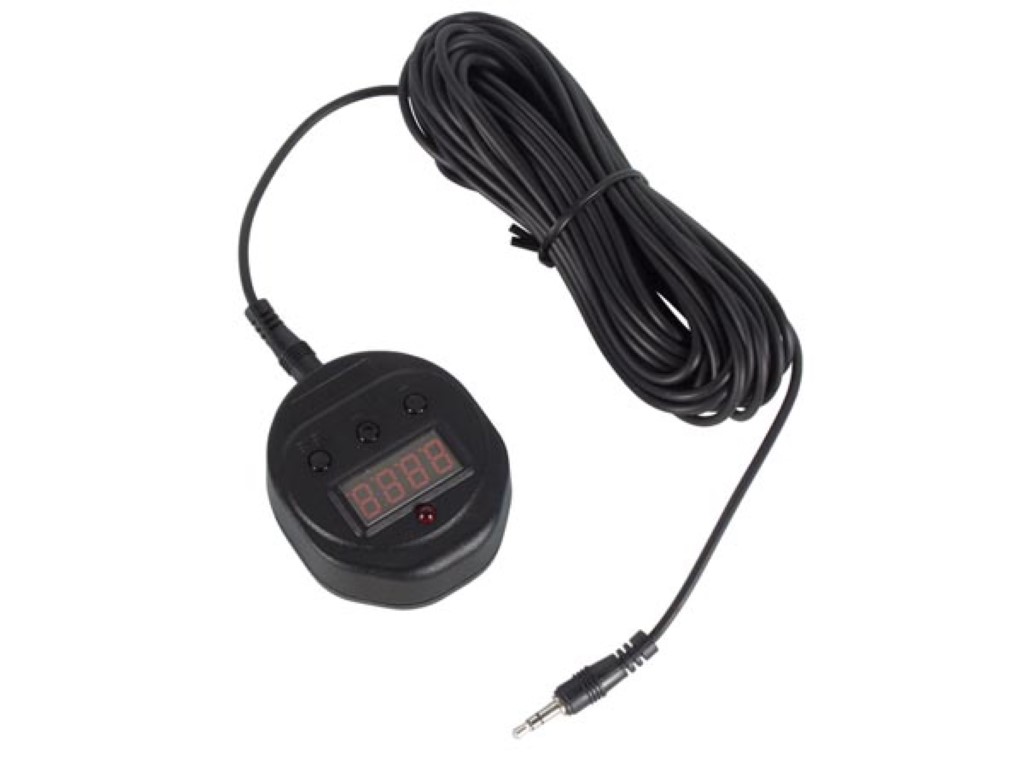

- Contents:
- One 4-digit counter
- One cable (10m) to connect the speaker output of the PEM7D with the input of the 4-digit counter PEM7D/C
- One mounting bracket (black finish) and mounting screws
- Manual
Specifications:
- Input voltage: 9-15Vdc
- Max. display: 9999 (4 digits)
- Addition: push "+" to add 1
- Subtraction: push "-" to subtract 1
- Manual operation: yes, hold + or - for 1 sec.
- Reset: press reset button ('0000')
- Monitor colour: red
- Casing material: ABS
- Current consumption: 48.7 mA ±10% (when '0000')
- Standby current: 25mA max.
- Light source: IR LED
- Ambient temperature: -20°C~45°C (-4°F~122°F)
- Response time of speaker: chime: 1 sec - - alarm: 30sec (adjustable)
- External chime output: NPN output
- Speaker output: chime/off/alarm (selected by slide switch)
- Included : mounting bracket, screw and cable (10m) with twin plugs
