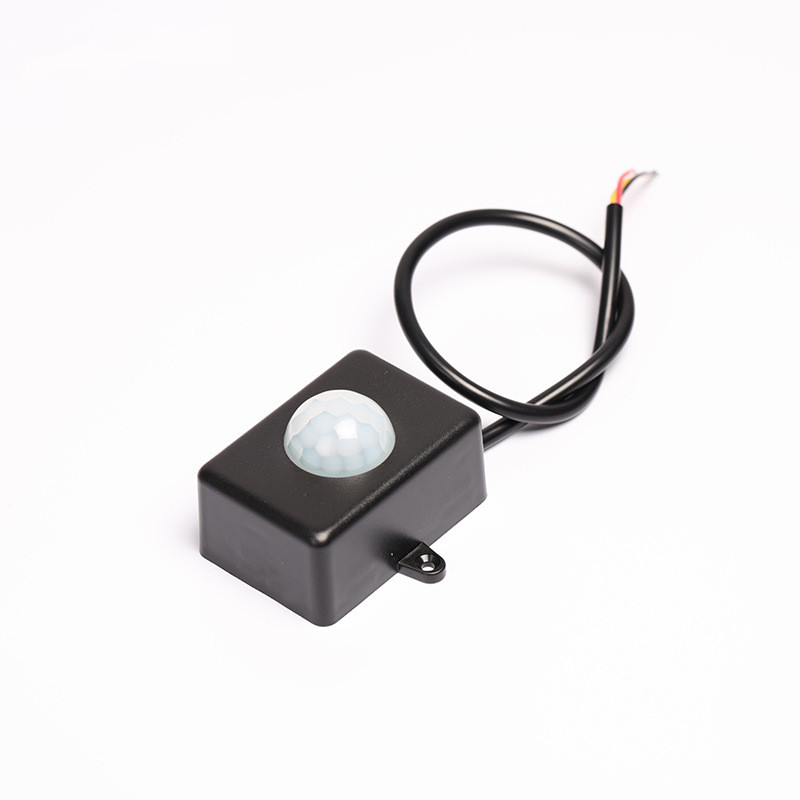

Features:
- Operating voltage DC 5-24V
- Current consumption ≤10mA (DC 12V)
- Standby current ≤60uA
- Level output 0V (3.3V at standby)
- Delay time 3S
- Detecting distance ≤6m
- Detecting angle 120
- Diameter of the Lens 23mm
- Outline size 52L*36W*23H mm
- Diameter of the mounting hole 2.5 mm
- Length of the cable 45cm
- Operating temperature -20C to +50C
- Wiring:
Red wire: +12V
Black wire: GND
Yellow wire: Signal
Connection of this PIR to FN-BC04 or FN-BC20 is as follows: GND to GND, power to power and output to K1
This PIR connected to a FN-TG01-TB
This PIR Connected to FN-AL7T
