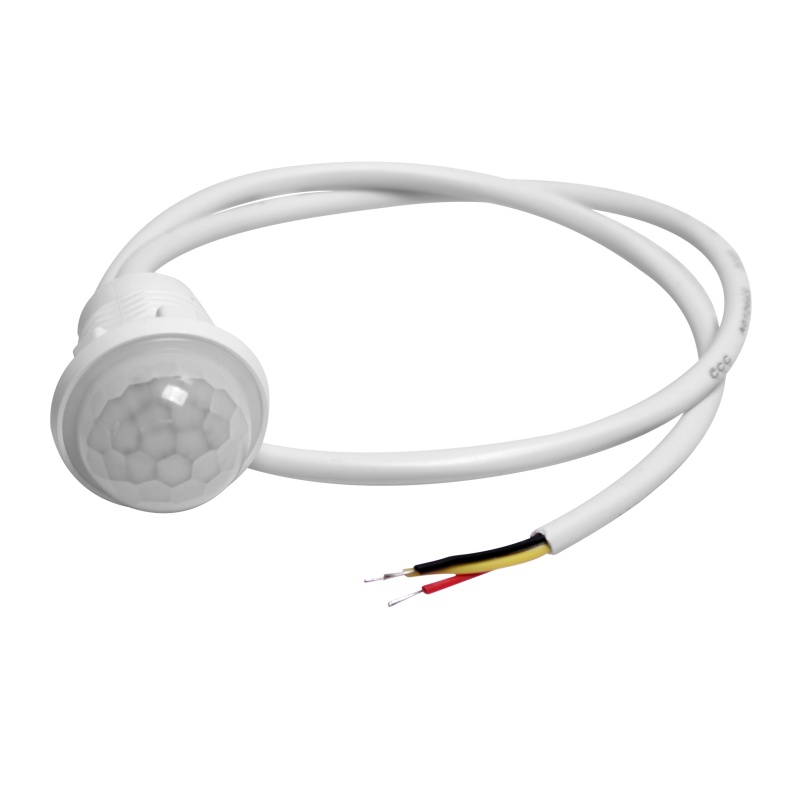

Specification
- Operating voltage: DC 5-24V
- Current consumption: ≤10mA (DC 12V)
- Standby current: ≤60uA
- Level output: 0V (3.3V at standby)
- Delay time: 3S
- Detecting distance: ≤6m (not adjustable)
- Detecting angle: 120
- Length of the cable: 45cm
- Operating temperature: -20C to +50C
- Wiring:
- Red wire: +12V
- Black wire: GND
- Yellow wire: Signal
Works with FN-TG01, FN-TG01S, FN-718, FN-AL7T, FN-BC20, etc.
