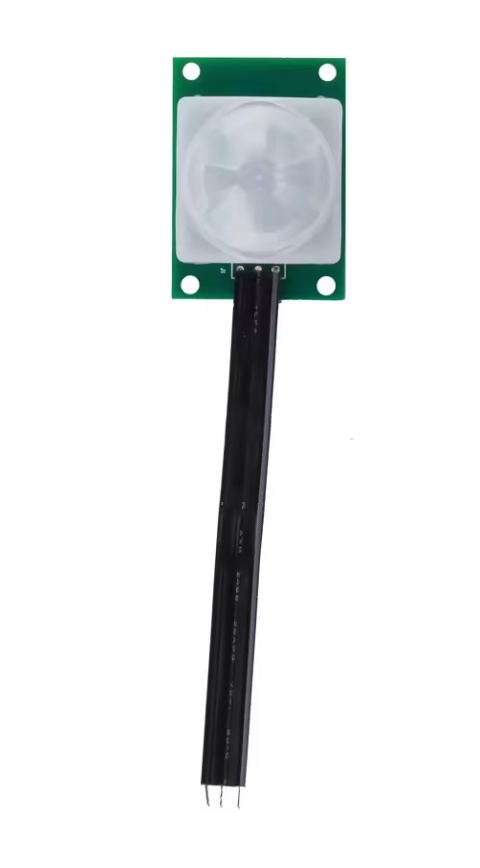

This is a fully assembled and tested miniature PIR module with only 3 connections: Power, Ground & Output.
Features:
- Rated for 3.3VDC to 12VDC input power.
- Output is an active high pulse of approx. 2 seconds and remains active as long as there is motion.
- Power up delay of 25 seconds to prevent false triggering.
- Range up to 15 feet.
- PCB size: 35mm x 25mm.
Mounting | DIP |
Description | pir module Human Detector Body Detection |
Type | Motion & Position Sensor |
Features | Repeatable triggered |
Output | Digital Output |
Compact size |
25x35mm |
Current drain | <40uA |
Operation Temperature | -20℃ - 60℃ |
Infrared sensor | dual element, low noise, high sensitivity |
Delay time | 25S |
Detection Distance | 5 Meters |
Detection Range | 90 Degree |
Output Pulse Width | ≥2S |
Supply voltage | 3.3-12V |
