Features:

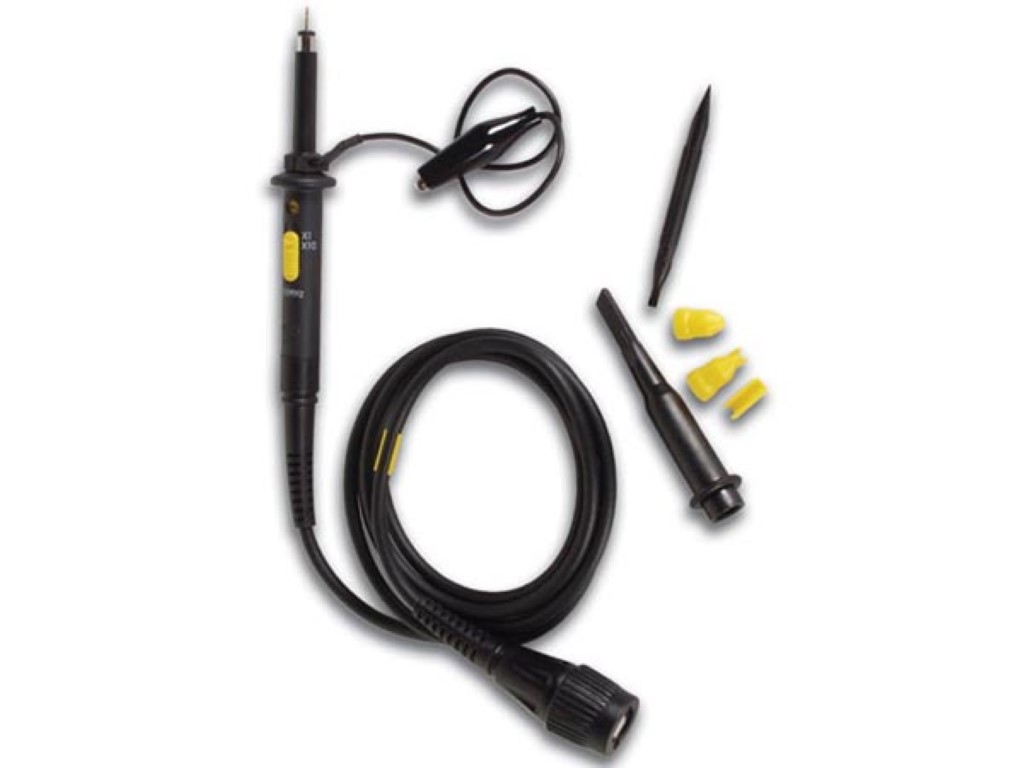

- complete probe set
- safety: conform with IEC-1010 cat II
- attenuation: 1:1 or 1:10
- position x1:
- attenuation: 1:1
- bandwidth: DC to 15MHz
- rise time: 23.3ns
- input resistance: 1Mohm (input resistance scope)
- input capacitance: 46pF + cap. scope
- working voltage: 600V DC incl. peak AC derating with frequency
- position REF: -
- position x10:
- attenuation: 1:10
- bandwidth: DC to 60MHz
- rise time: 5.8ns
- input resistance: 10Mohm (if scope input = 1Mohm)
- input capacitance: ±15pF
- working voltage: 600V DC incl. peak AC derating with frequency
- compensation range: 10 to 50pF
- cable length: 4ft
- remarks: with insulated BNC connector
