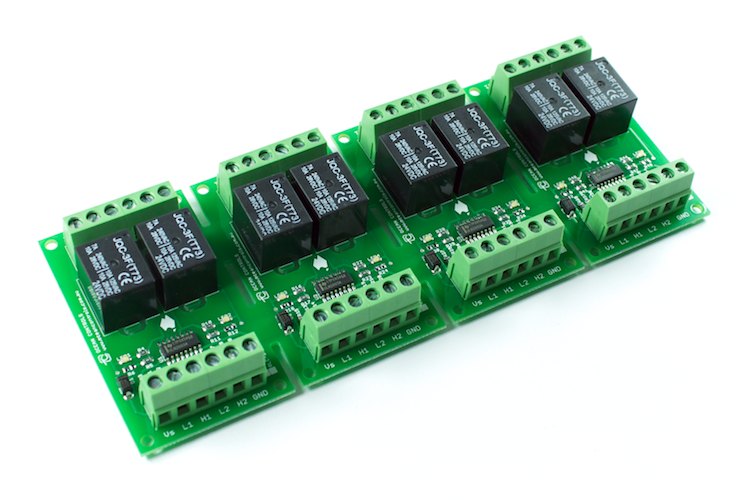

Eight-way relay card. This card includes a relay driver allowing a very wide range of input configurations. The driver allows direct connection to many logic families, industrial sensors (NPN or PNP) dry contacts or voltage outputs.
Each relay has HI and LO input terminals. The relay is activated when the HI terminal is driven high or the LO terminal is driven to a low voltage. Each channel has an indicator LED.
A 3.5 mm hole in each corner allow easy mounting on a panel.
PLEASE NOTE: Wiring high voltage can be dangerous and if at all unsure, you should contact an electrician to ensure your installation is safe and meets relevant specifications.
Specifications:
| Supply Voltage: | 21.3 to 26.4 VDC |
|---|---|
| Supply Current: | ~4 ma/channel + ~20 mA/active relay |
| Low Input Activation Voltage: | ≤0.8 VDC |
| Low Input Voltage Range: | 0 V to Supply Voltage |
| High Input Activation Voltage: | ≥2.4 VDC |
| High Input Voltage Range: | 0 V to Supply Voltage |
| Output Form: | 1-Z SPDT (NO & NC) |
| Output Switch Voltage: | 240 VAC, 28 VDC |
| Output Load Current: | 7 A (240 VAC), 10 A (28 VDC) |
| Relay Coil to Contact Isolation: | ≥1,500 VAC (1 minute) |
| Relay Contact to Contact Isolation: | ≥750 VAC (1 minute) |
| Relay Contact Resistance: | ≤100 mΩ |
| Dimensions: | 174 × 71 × 20 mm |
