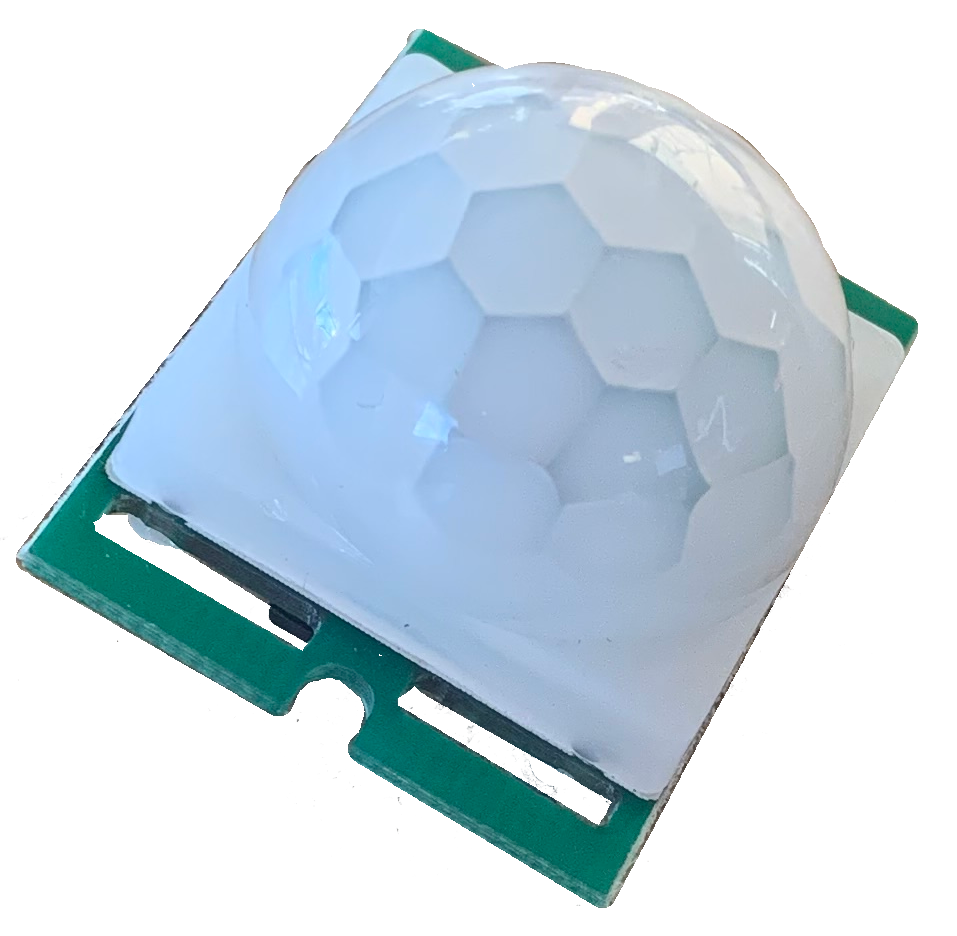

Description: SL620 human body induction module is an automatic control product based on infrared technology. It has high sensitivity, high reliability, and ultra-low voltage working mode. It is widely used in all kinds of automatic induction equipment, especially in dry battery-powered automatic control products.
Technical Parameters:
- Working Voltage Range DC1.8-28V
- When the current is less than 50uA, 5V
- Level Output High 3V/Low 0V
- Delay time default 10S (5-200S adjustable) can produce zero seconds-10 minutes
- Trigger mode repeated trigger (default)
- Blockade time default 2.5S can be produced in a range of zero seconds - tens of seconds
- The external dimension of the PCB is 32.7mmx24mm.
- Induction Angle < 120 Degree Cone Angle (Visual Lens Performance)
- Induction distance up to 20 meters (visual lens performance)
- Working temperature - 20-+85 degrees
- Induction Lens Size Diameter: 23mm (Default)
