Description: This is one in a family of products based on the most advanced CMOS mixed signal technology. It integrates image array, signal processing, timing and control circuitry, all on a single chip. It is ideal for applications requiring a small footprint, low power and low cost.

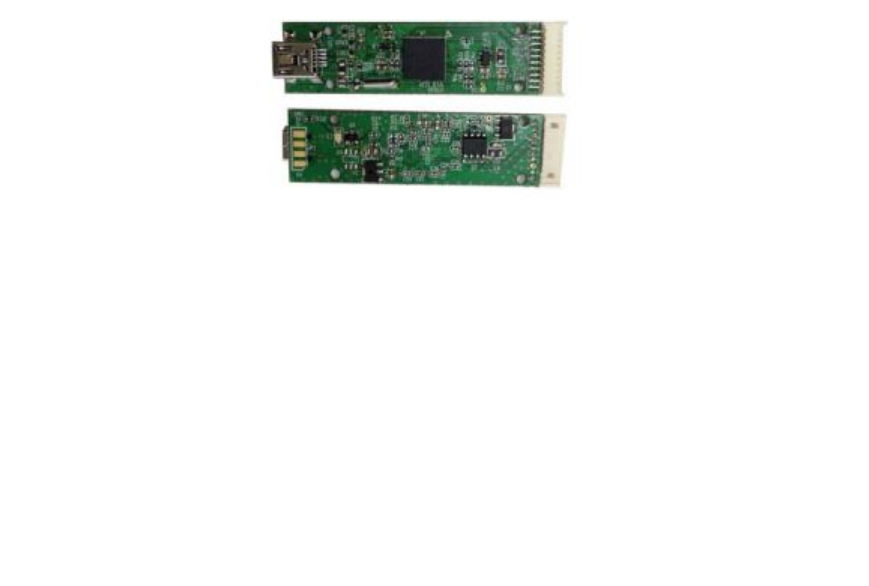

The C7095 is specially designed for micro-camera module, mCam501. It has built in a delicate DSP to interface mCam501 as well as the USB2.0 transceiver to output compressed video thru USB. It is UVC compatible and no PC driver is required for windows XP or win7/32. It also works with some Linux system.
Features
Small in size, 15x59mm
USB2.0 UVC device
Plug and play, no driver required
MJPEG video at 30fps
Video size 640x480
Good for winXP and win7/32
Good for some Linux system
Mini-USB connector
Button for color balance
Connector to match mCam501
Low power consumption
