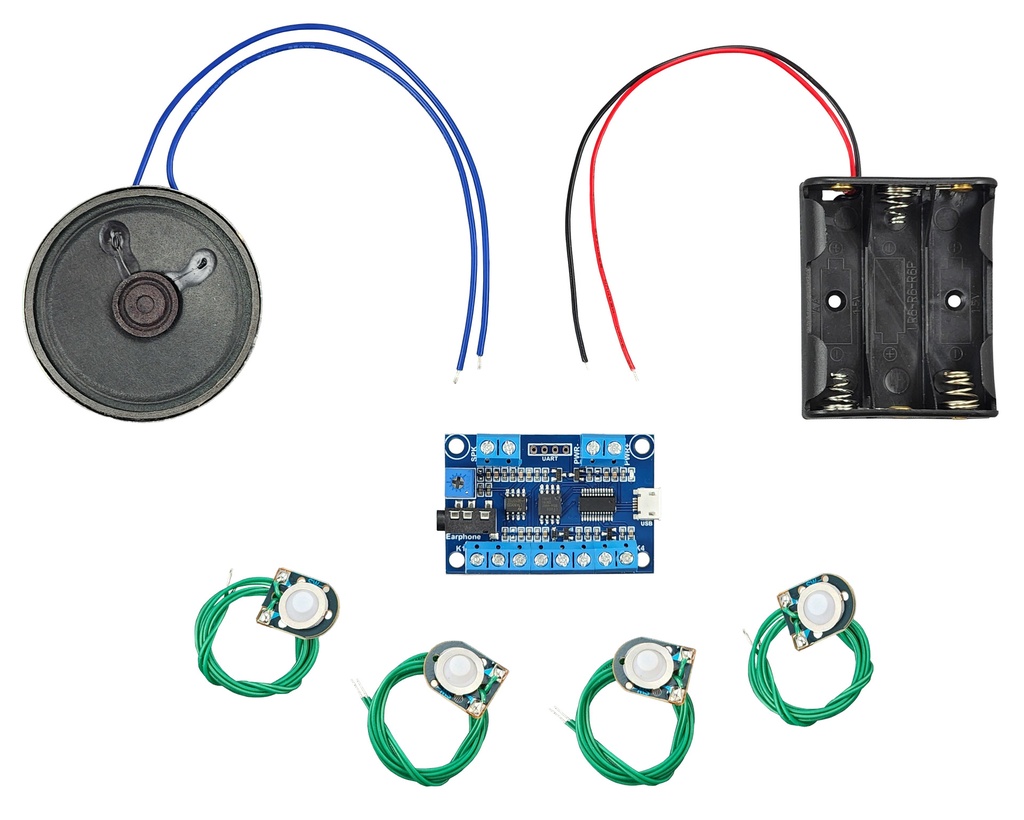

USB Recording Module (Multi Sound Files per Button) with Buttons, Speaker and Battery Box

This kit includes:

• The MP3 player board with built-in 3 Watt amplifier
• a 3-watt speaker with 6 inches of wire connected.
• 3 x AA battery holder with 5.9" leads
• 4 x buttons (choose when ordering: gummy buttons with 12" wires OR Tactile Button with 6" wires)

Gummy buttons 12" wires






OR Tactile button with 6" wires

All that is needed is a small screwdriver to attach the wires to the MP3 board. Add 3 x AA batteries and you are good to go!

Features of The FN-T418

• Uses a micro USB port to directly plug into the USB port of the PC for easy use of the sound module.
• Built-in an 8MB flash memory, which is able to store a total of about 8 minutes long MP3 files of
• Supports earlier Windows, Windows 10, and Mac operating systems
• Support audio format: MP3 and WAV
• Able to play multiple audio files per button.
• Built-in a class D 3Watts amplifier IC and a 3.5mm audio jack for stereo output
• Directly drives a 0.5Watts to 3Watts (4ohms to 8ohms) speaker
• Volume is adjustable by adjusting the blue potentiometer
• Built-in headphone output for easy use if the external speaker is not something that will work with your project.
• 4-Key Operations with 7 Triggering Modes
• • 0: Short press the button to start playing, and during playing, if you press the button again, the playback will be interruptible and it will play from the beginning.
  • 1: Press the button and hold to start playing repeatedly, and when the button is released the board stops playing.
  • 2: Short press the button to start playing, and during playing, if you press the button again, the playback will be NOT interruption.
  • 3: Short press the button to start playing repeatedly and press the button again to stop.
  • 4: Press the button and hold to start playing once, and when the sound file goes to the end, the board stops playing.
  • 5: Interruptible and advance to the next sound file.
  • 6: Uninterruptible
• Working voltage: 3.7-5V DC
• Working current: ≤100mA (1Watt 8ohms speaker)
• Standby current: 0μA
• Suitable to be powered with 3 x AA, 3 x AAA batteries, or a Li-ion battery
• PCB size: 50mm x 34mm
• Height of the module: 14mm

Features of the Battery Holder

• With leads (150mm)
• For: 3 x AA (LR06)

Features of the Button

• With 12" (305mm) leads
• Ends stripped and tinned 0.12" (3mm)

        Specifications:

• • Momentary Push Switch
  • Flat rubber head (white)
  • 3mm height

Features of the speaker

• Small Size
• Power rating: 3W
• Impedance: 8Ω
• 57mm diameter and 12mm high
• 6 inches of wire pre-attached.
