Features:

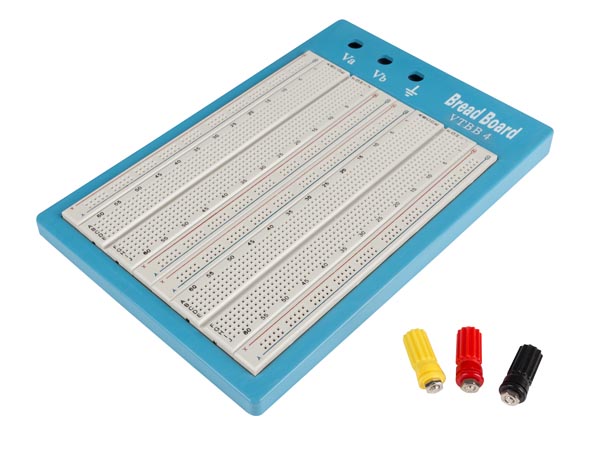

- Base socket (see figure): twin columns of 6 x 30 terminals are separated by a 0.24" center channel
- Bus strip : 8 buses of 50 connected terminals arranged in 4 rows
Specifications:
- Voltage: max. 30 V
- Current: max. 3 A
- Material:
- External body: external body is made of ABS
- Internal interconnected clips: stainless steel
- Base socket: 2
- Bus strip: 4
- Tie points: 1680
- 14-pins IC capacity: 4
- Binding post: 3
- Dimensions:
- Board: 220 x 150 x 18 mm
- Breadboard: 174 x 132 mm
- Weight: 313 g
