Features:

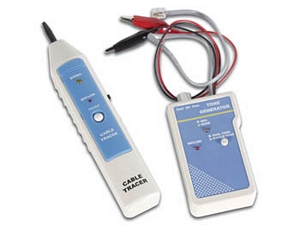

- network tester:
- consists of a tone generator and a probe method:
- use the tone generator and the probe to determine where a cable is going and whether or not (and where) the cable is interrupted
- signal viewing in 3 modes: lamp (L), speaker (SP) or both (S&L)
- tone generator output (square waveform):
- single (900Hz) or dual (900 - 1000Hz)
- comes with soft carrying bag
- tone generator
- working voltage: DC 9V ±15%
- working current: 10mA (intermittent tone) / 20mA (continuous tone)
- output wave form: square wave signals ±10Vpp
- single audio frequency: ± 900Hz
- dual audio frequency: ± 900Hz - 1000Hz
- dimensions: 4.5" x 2.4" x 1.1"
- weight: ± 130g
- probe
- working voltage: DC 9V ±15%
- working current: 25mA (L) / 80mA (max. SP volume) / 100mA (max S&L volume)
- max. reception sensitivity: > 30mV
- maximum output volume: ±120dB
- dimensions: 8.1" x 1.6" x 1.5"
- weight: ±80g
