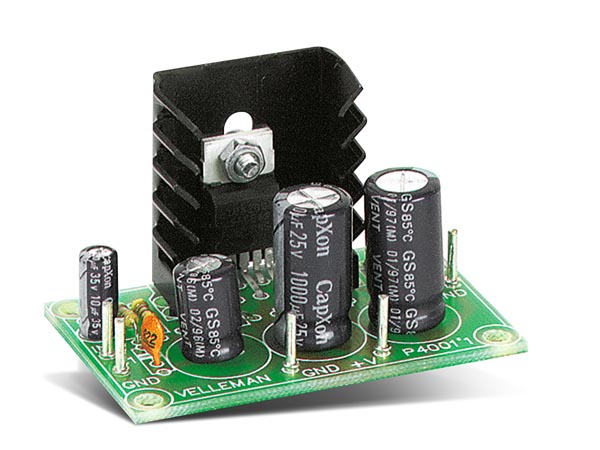

Description: This small amplifier is constructed around the TDA2003 IC, capable of delivering 4Wrms at 4ohms. The IC is completely thermally and short-circuit protected. A conventional direct current can be connected as supply.
Features:
Features:
- Also available in kit version: K4001
- Music power output: 7W / 4ohm
- Output: 3.5Wrms / 4ohm or 2Wrms / 8ohm
- Total harmonic distortion: 0.05% (1W / 1kHz)
- Frequency response: 20Hz to 20kHz (-3dB)
- Signal-to-noise ratio: 86dB (A weighted)
- Input sensitivity: 40mV / 150Kohm
- Overload and short-circuit protected
- Supply voltage: 15V DC (8 to 18V DC possible) / 0.5A
- Dimensions: 2.2" x 1.4"
