"Use your PC to connect to the outside World"
Features:

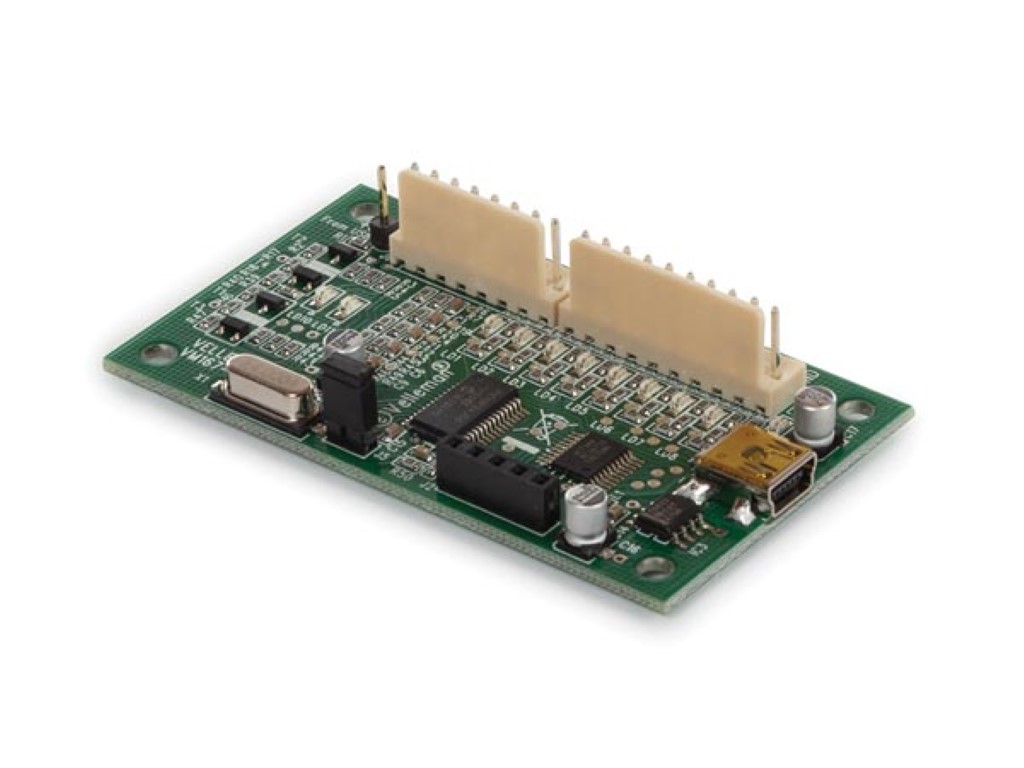

- Very Small, universal USB powered & controlled I/O board !
- Add USB interface to existing equipment
- 15 inputs / outputs, including analogue inputs / digital inputs/outputs and PWM outputs
- The number of inputs/outputs can be further expanded by connecting two cards to the PC's USB connectors
- All communication routines are contained in a Dynamic Link Library (DLL)
Specifications:
- 5 x analogue 10 bit resolution inputs: 0…5V / (30K)
- 8 x digital 5V inputs/outputs with on-board LED indication: Input/output mode is selectable in groups of 4 terminals
- 1 x 32 bit pulse counter up to 1MHz input frequency
- 2 x 8 bit 5V PWM outputs: 0 to 100%
- On-board LED indication for I/O and PWM outputs
- Output current, PWM: 10mA / Digital outputs: 6mA
- Up to 2 cards can be connected to one PC
- USB port: USB 1.1 & 2.0 compatible
- DLL supports Windows XP, Windows Vista and Windows 7*
- PWM frequency selection: 2930Hz,11.7kHz or 46.9kHz
- Command execution time, read:
- read: 4ms
- write: 1ms
- Power consumption through USB port: approx. 50mA
Dimensions:
- 68 x 40 mm / 2.7 x 1.6"
Documentation and Downloads
- Dynamic Link Library: Communication routines
- SDK Rev 1.18.18: Software development pack with drivers,DLL,demo, diagnose and program examples
- User manual: manual explaining the module's possibilities and how to use the module
