Also avilable as a Kit. Click here to buy the Kit

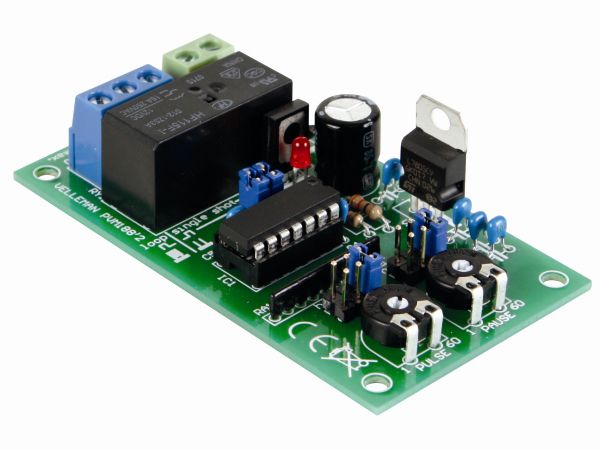

This kit has a wide time range of minimum 1 second and maximum 60 hours and can be easily adjusted via a potentiometer. The switch-on and switch-off delay or interval timer is easily programmable via potentiometer and jumper. The timer can be used for many different applications: flashing lights, pulse control of buzzers, automated watering, garden sprinklers, automated flushing or ventilation in toilets, timer for battery charger, cyclic switching on and off of machines, etc.
Features:
- Wide timing range (1 second to 60 hours adjustable)
- Easy time setting
- Start with:
- 'pulse'
- 'pause'
- Single shot
- Loop
- Applications:
- Blinking of lights
- Pulsed operation of buzzers
- Automatic irrigation
- Lawn sprinklers
- Toilet flushing or ventilation
- Battery charging time control
- Cyclic operation of equipment
- Power supply: 12-24VDC
- Relay output: 16A/230VAC max.
- Dimensions: 80x45x22 mm / 3.15 x 1.78 x 0.86"
